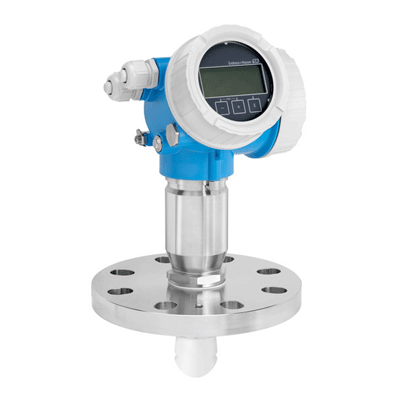

订货号 NMR81-LQ64/0 扩展订货号 NMR81-NC1BA1A2X0ACAABA1GUJICX 名称 雷达液位计 NMR81 基本描述 Level, radar, contactless.
Precision device, free space.
Application: liquids.
Highly precise measurement for
custody transfer and inventory control.
Superior corrosion resistance.
Hybrid tank measurement system.
Tank correction algorithms.
Flexible fieldbuses, inputs and outputs.
Complete tank sensor integration.
:: Custody transfer certified.
:: 80 GHz FMCW.
:: Superior drip-off antenna design.
:: Installation close to tank wall.
:: SIL2 / SIL3 according IEC61508.认证： NC INMETRO Ex ia/db IIC T6 Ga/Gb INMETRO Ex db [ia Ga] IIC T6 Gb 端子类型: 1 弹簧端子 供电; 显示: B 85-264VAC; LCD + 操作 主输出: A1 Modbus RS485 第二路模拟量输入输出: A2 Ex d/XP, 2x 4-20mA HART, 2x RTD input 第二路数字量输入输出Ex d/XP: X0 不选择 外壳: AC 变送器铝, 涂层, 过程 316/316L 电气连接: A Thread M20, IP66/68 NEMA Type 4X/6P Encl. 天线: AB 50mm/2" 过程密封: A1 HNBR -30...150oC/-22...302oF 过程连接: GUJ DN150 PN10/16 B1, 316L flange EN1092-1 精度, Weight + Measure 认证: ICX 标准型, 5点 标定证书
NMR81-NC1BA1A2X0ACAABA1GUJICX | NMR81-LQ64/0
采用80GHz工作频率的水滴天线，适用于计量交接应用
