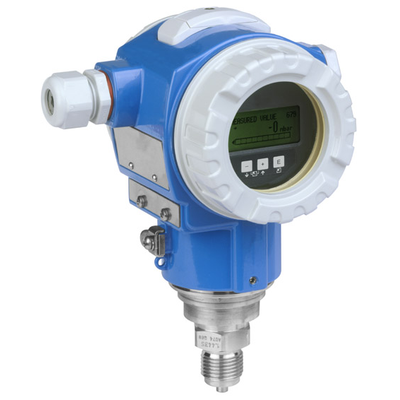

PMP71-1DA1KE1RDFMA 订货号 PMP71-961Q4/115 扩展订货号 (PMP71-1DA1KE1RDFMA ) 名称 压力变送器PMP71 基本描述 Measurement: Pressure, piezoresistive.
Compact.
Application: pressure, level.
Membrane: Metal, welded.
:: High reliability through process
monitoring.
:: High long term stability.

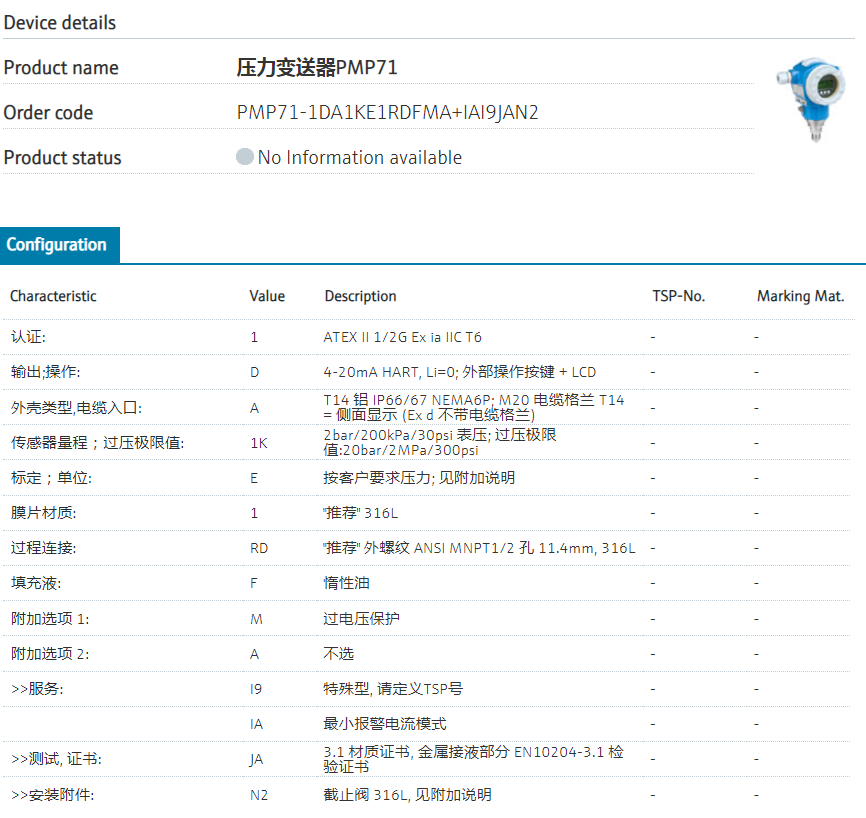

:: Modular.认证: 1 ATEX II 1/2G Ex ia IIC T6 输出;操作: D 4-20mA HART, Li=0; 外部操作按键 + LCD 外壳类型,电缆入口: A T14 铝 IP66/67 NEMA6P; M20 电缆格兰 T14 = 侧面显示 (Ex d 不带电缆格兰) 传感器量程；过压极限值: 1K 2bar/200kPa/30psi 表压; 过压极限值:20bar/2MPa/300psi 标定；单位: E 按客户要求压力; 见附加说明 膜片材质: 1 "推荐" 316L 过程连接: RD "推荐" 外螺纹 ANSI MNPT1/2 孔 11.4mm, 316L 填充液: F 惰性油 附加选项 1: M 过电压保护 附加选项 2: A 不选
PMP71-1DA1KE1RDFMA | PMP71-961Q4/115
压力变送器， 4-20mA HART输出, 量程200kPa 膜片材质316L, 螺纹MNPT1/2连接
