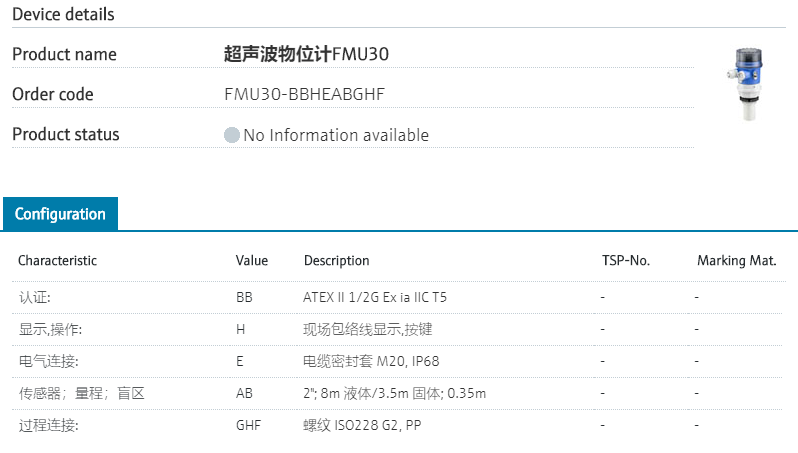

  • Order Code FMU30-13H7/0
    Ext.Order Code (FMU30-BBHEABGHF)

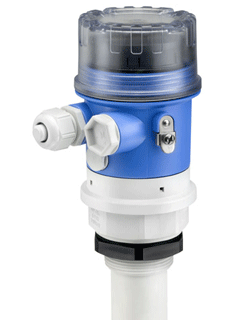

    　 Prosonic T FMU30
    　 71098185
    　 SPK: FJC
    　 Level transmitter, continuous.
    Ultrasonic, contactless.
    Housing F16 single compartment, plastic.
    Sensor enclosure: PP.
    Sensor membrane: EPDM.
    Process temperature: -20...60oC/
    -4...140oF.
    2-wire, 4-20mA.
    Process pressure: max 3bar abs.
    Operating languages
    (DE,EN,NL,FR,ES,IT,JA).
    :: Measuring range freely adjustable.
    :: Volume calculation possible.
    Application safety.
    :: Integr. sound velocity compensation.
    :: Self cleaning effect sensor membran.
    　 Approval:
    BB ATEX II 1/2G Ex ia IIC T5
    　 Display; Operation:
    H  Envelope curve display on site; push button
    　 Electrical Connection:
    E Gland M20, IP68
    　 Sensor; Max Range; Blocking Distance:
    AB  2"; 8m liquid/ 3.5m solid; 0.35m
    　 Process Connection:
    GHF Thread ISO228 G2, PP

FMU30-BBHEABGHF

FMU30 explosion-proof ultrasonic level gauge with display, 8-meter range, 4-20mA output, easy to install with threads.
FMU30-BBHEABGHF
