  • MS1
    mechanical diaphragm pump

    • flow range: 5.5-1200 liters/hour, maximum pressure 10bar
    • contact end: PVDF, PVC, SS316L (pump head), PTFE (diaphragm), EPDM or FPM (sealing ring) and ceramic and stainless steel (valve ball)
    • MS1 series mechanical diaphragm pump provides a variety of pump head material options, the motor can be equipped with frequency conversion and explosion-proof motor, stroke length can be manually adjusted, can also be equipped with electronic stroke regulator for automatic adjustment, so the application range is very wide.
    • and the characteristics of the piston pump is not the same, MS1 series mechanical diaphragm metering pump is absolutely safe, no leakage, so the scope of application is wider than the piston pump.
    • MS1 series mechanical diaphragm pump can be manually adjusted by the stroke adjustment knob, or the optional electronic stroke regulator can be automatically adjusted. This regulator can receive 4-20mA current signal and water meter digital pulse signal input.



    technical parameters:



    Model 　 maximum pressure [bar] Connection Mode 　 Weight
    [kg]    		 carton size
    Diaphragm diameter stroke length stroke frequency flow 　 PVC 　 PVC Motor 　 PVC length x width x height
    [mm] [mm] [times/min] [l/h] SS316L PVDF SS316L PVDF [kW/pole] SS316L PVDF [mm]

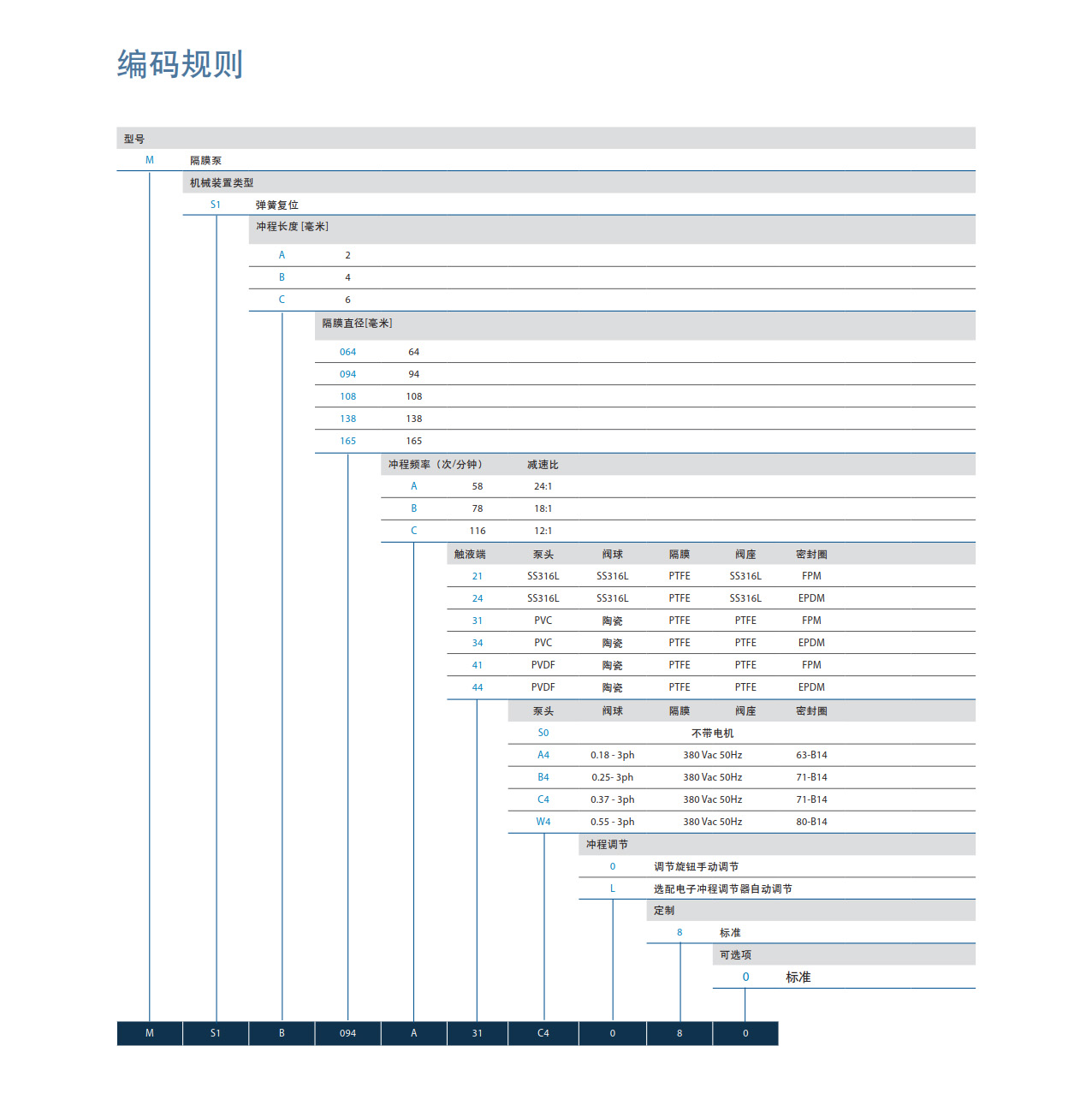

    MS1A064A **A4080 64 2 58 5.5 10 10 1/4" GF 1/4" GF
    DN15    		 0.18/4 (A4) 15 13 430X280X530
    MS1A064B **A4080 78 8
    MS1A064C **A4080 116 11
    MS1A094A **B4080 94 58 20 10 10 3/8"GF 3/8 "GF
    DN15    		 0.25/4 (B4) 16 14
    MS1A094B **B4080 78 26
    MS1A094C **B4080 116 40
    MS1B108A **C4080 108 4 58 60 10 10 0.37/4 (C4) 19 16
    MS1B108B **C4080 78 80
    MS1B108C **C4080 116 120 3/4" GF 3/4 "GFDN20
    MS1C138A **C4080 138 6 58 155 7 7 23 18 590X400X550
    MS1C138B **C4080 78 220
    MS1C138C **C4080 116 310 116 1" GF
    DN25
    MS1C165A **C4080 165 58 230 5 5 1" GF 27 21
    MS1C165B **C4080 78 330
    MS1C165C **C4080
    MS1C138Q **W208A 138 116 530 4 4
    MS1C165Q **W208A 165 232 750 4.5 4.5 0.55/4
    (W4)    		 25 20
    232 1200 2 2 29 23
