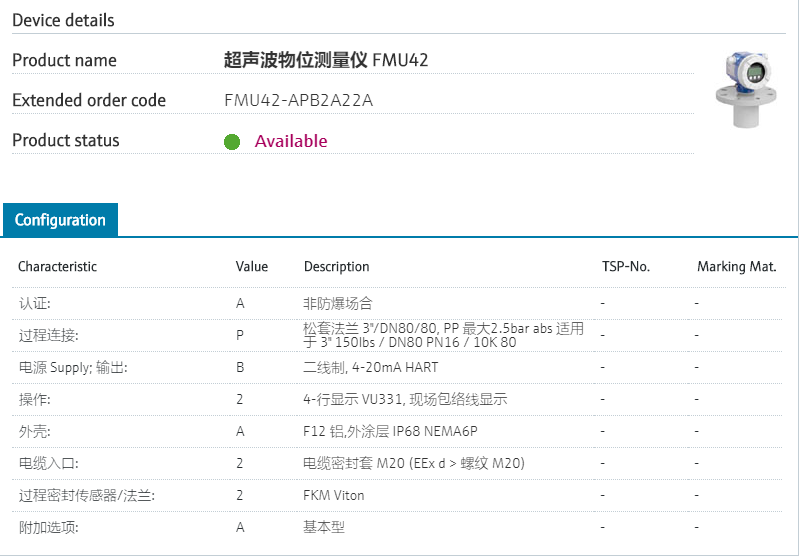

  • Order Code FMU42-APB2A22A
    Ext.Order Code (FMU42-APB2A22A)
    　 Prosonic M FMU42
    　 52022500
    　 SPK: FJC
    　 Level, ultrasonic, contactless.
    Application: liquids, solids.
    Sensor: PVDF.
    Measuring range: 10m/33ft (liquid),
     5m/16ft (solid).
    Blocking distance: 40cm/1.3ft.
    Incl. Setup-/diagnostic software.
    :: High availability:
    Self cleaning effect of sensor membrane.
    :: Application safety:
    independent of dielectricity/density.
    　 Approval:
    A Non-hazardous area
    　 Process Connection:
    P  UNI flange 3"/DN80/80, PP max 2.5bar abs./ 36psia, suitable for NPS 3" Cl.150 / DN80 PN16 / 10K 80
    　 Power Supply; Output:
    B 2-wire; 4-20mA HART
    　 Operation:
    2  4-line display VU331, envelope curve display on site
    　 Housing:
    A F12 Alu, coated, IP68 NEMA6P
    　 Cable Entry:
    2 Gland M20 (EEx d > thread M20)
    　 Process Sealing Sensor / Flange:
    2 FKM Viton
    　 Additional Option:
    A Basic version

FMU42-APB2A22A

In stock: E+H ultrasonic level gauge FMU42-APB2A22A 10 meter range, DN80 flange, with 4-20mA HART output.
FMU42-APB2A22A
