Order Code：53W2H-HC0B1AC2AGAA

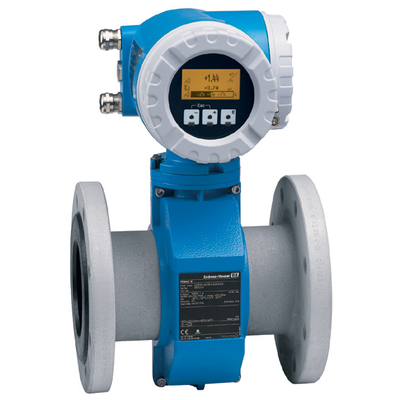

Name：Promag 53W2H, DN200 8"
Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Liner | H | Hard rubber |
| 020 | Process Connection | C | PN16, St37-2/FE 410W B, flange EN1092-1 (DIN2501) |
| 030 | Electrodes | 0 | 1.4435/316L |
| 040 | Calibration | B | 0.2% |
| 050 | Additional Test, certificate | 1 | w/o |
| 060 | Approval | A | Non-hazardous area |
| 070 | Housing | C | Wall Alu, IP67 NEMA4X |
| 080 | Cable, Remote Version | 2 | 10m/30ft coil + signal cable |
| 090 | Cable Entry | A | Gland M20 (EEx d > thread M20) |
| 100 | Power Supply; Display | G | 85-260VAC; CN, 4-line + Touch control, CN= language ZH + EN |
| 110 | Adjustment; Software Feature | A | Factory setup; basic version |
| 120 | Output, Input | A | 4-20mA SIL HART + frequency |
