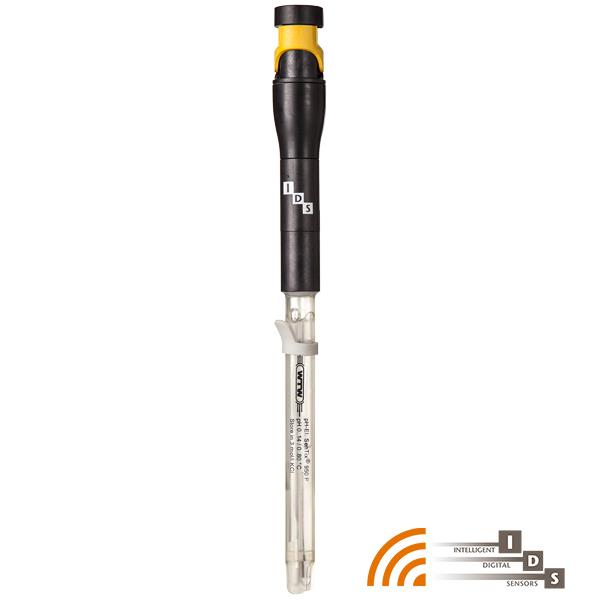

103761 SenTix® 950-P
IDS pH combination electrode with liquid (3 mol/l KCl) electrolyte, plastic shaft and integrated temperature sensor. QSC function. Electrode with plug head for AS IDS/1.5 cable or wireless module.
IDS pH组合电极，带液体（3mol/l KCl）电解质、塑料轴和集成温度传感器。QSC功能。带插头的电极，用于AS IDS/1.5电缆或无线模块。
Temperature Sensor - Ceramic Diaphragm - Cylindric Membrane
SenTix® 950, 950-P: IDS precision pH electrode with ceramic diaphragm and build-in temperature sensor for pH measurement in water and aqueous solutions in lab and field.
| Variants | ||||
| Art.-No. | Name | Content | ||
| 103750 | SenTix® 950 | 1.5 m fixed cable with water-proof digital plug | ||
| 103761 | SenTix® 950-P | Plug head without cable | ||
Highlights:
- Temperature sensor
- Ceramic diaphragm
- Cylindric membrane shape
- Safely measured values due to signal processing in the sensor
- Easy electrode replacement thanks to calibration data stored inside sensor
- Sensor quality monitoring by QSC function
IDS pH combination electrode with liquid electrolyte, plastic shaft and integrated temperature sensor, QSC function.
-
SenTix® 950 950-P Order no. 103750 103761 Membrane shape Cylindric Shaft Plastic Diaphragm Ceramic Temp. sensor NTC 30kOhm Reference electrolyte KCl 3 mol/l Ag+ free Membrane resistance < 1 GOhm Measuring range 0 … 14 pH Temp. range 0 … 80 °C Shaft length 120 mm Shaft diameter 12 mm Connection 1.5 m fixed cable with water-proof digital plug Plug head without cable
