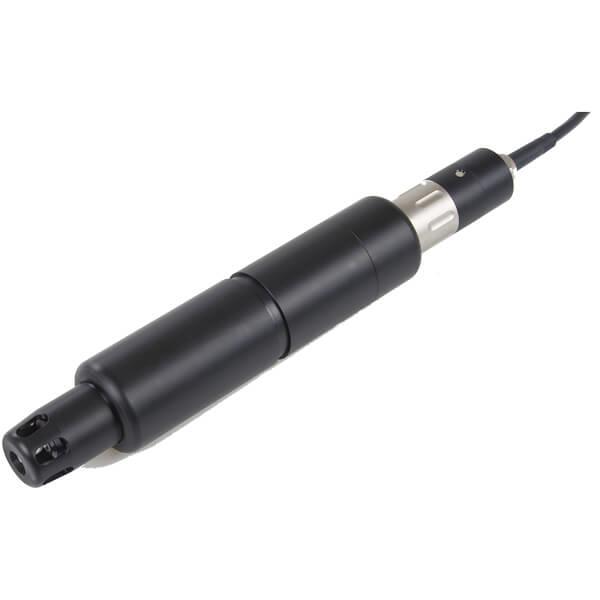

TriOxmatic® 700 IQ SW

Name: 201641 TriOxmatic® 700 IQ SW
Brand: WTW
SKU: 201641
Availability: InStock

WTW 201641

通用数字D.O.传感器，用于监测/控制海水中的氧气输入，与IQ sensor NET配合使用。随附配件套件（ZBK 600），包括：2个交换膜头（WP 600/2）、50 ml电解质溶液（ELY/A）、50毫升清洁溶液（RL-AG/Oxi）、1个阴极清洁剂（SF 300），不带连接电缆（SACIQ单独订购）

获取报价返回列表

Digital electro-chemical IQ sensors for dissolved oxygen, connectable to the IQ SENSOR NET

TriOxmatic® IQ: Reliable and proven digital electro-chemical oxygen sensors with 3 electrode system (ECDO) for precise and accurate measurements:

Low investment costs
No running in, no long-term drift - stable from the beginning to the end
Self-diagnosis system SensReg/SensLeck by means of 3 electrode system

The electro-chemical sensors are known for their high accuracy - from the beginning. Their teflon membrane makes them extremely insensitive to biological deposits. Therefore, in most cases, you will not need an additional cleaning unit.

Also, the membrane - just like the electrolyte consumption - is monitored continuously. Our self-diagnosis system SensLeck and SensReg show occurring errors automatically.

The sea water model is optimized for the use in special media: All wetted parts consist of titanium and plastic and are therefore extremely corrosion-resistant.

Furthermore, if you want, you will find a sensor with a faster response time or for the measurement of trace oxygen.

Model	TriOxmatic^® 700 IQ	TriOxmatic^® 700 IQ SW*	TriOxmatic^® 701 IQ	TriOxmatic^® 702 IQ
Order No.	201640	201641	201644	201646
* SW: Sensor as sea water model (with plastic arming (POM))
Measuring method	Electrochemical
Measuring range (25 °C)
O₂ concentration	0.0 ... 60.0 mg/l		0.00 ... 20.00 mg/l 0.0 … 60.0 mg/l	0 ... 2000 µg/l 0.00 … 10.00 mg/l
O₂ saturation	0 ... 600%		0.0 … 200.0% 0 … 600%	0 … 110%
Resolution
O₂ concentration	0.1 mg/l		0.01 mg/l 0.1 mg/l	0.001 mg/l 0.01 mg/l
O₂ saturation	1%		0.1% 1%	0.1%
Response time at 25 °C	t₉₀: 180 s		t₉₀: 30 s t₉₉: 90 s	t₉₀: 30 s t₉₉: 110 s
Minimum flow rate	0.05 m/s		0.23 m/s	0.3 m/s
SensCheck	SensLeck SensReg	SensReg	SensLeck SensReg	— SensReg
Temp. measurement	Integrated NTC, 23 °F ... 140 °F (-5 °C ... +60 °C) ± 0.5 °C
Temp. compensation	32 °F ... 140 °F (0 °C ... +60 °C)
Pressure Resistance	10 bar (incl. sensor connection cable)
Ambient Conditions	Operating temperature: 32 °F ... 140 °F (0 °C ... +60 °C); Storage temperature: 23 °F ... 149 °F (-5 °C ... +65 °C)
Electrical connections	2-wire shield cable with quick fastener to sensor
Electromagnetic Compatibility	EN 61326, Class B, FCC Class A; Intended for indispensable operation
Certifications	CE, cETL, ETL
Mechanical	Membrane head assembly, locking cap: POM Sensor body: V4A stainless steel 1.4571 Protection rating: IP 68
Weight (without cable)	Approx. 1.46 lb (660 g)	Approx. 2.58 lb (1,170 g)	Approx. 1.46 lb (660 g)
Warranty	2 years for defects in quality
