Analog controller to measure conductivity
User-friendly, analog field monitor - suitable for numerous conductivity measuring cells due to different measuring ranges and cell constants:
•For versatile applications with 7 selectabel measuring ranges
•connection of different measuring cells possible
•User-friendly operation thanks to clear menu structure

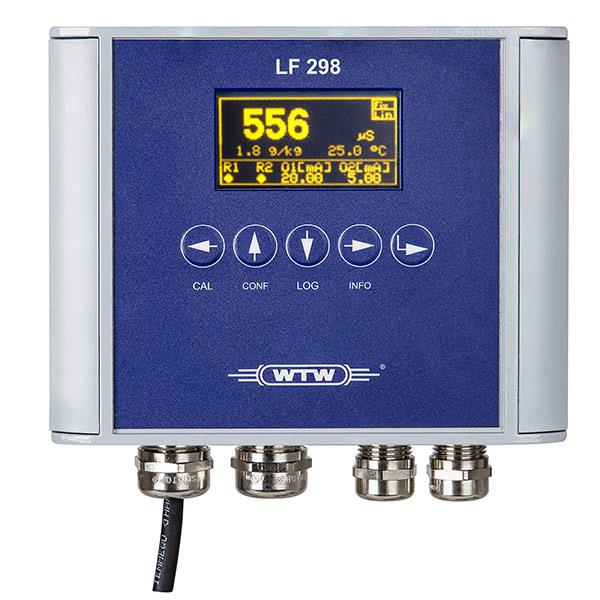

The LF 298 is an economical and metrologically flexible solution for use in the field. Galvanically isolated outputs are just as much standard as a complete function monitoring of the monitor and the connected sensor.
|
Model |
pH 298 |
Oxi 298 |
LF 298 |
Cl 298 |
|
Order No. |
191230, 191232, 191234 |
291230, 291234 |
391230, 391234 |
801254 |
|
*) Please note: The permitted operating voltage of the sensor can vary considerably |
||||
|
Parameter |
pH/ORP |
Oxygen |
Conductivity |
Chlorine, elektrochemical |
|
Measuring Range |
-2 … 16 pH |
0 … 20 mg/l |
0 … 500 mS/cm, different measuring ranges adjustabel |
0 … 2 mg/l |
|
Temperature Measurement *) |
-10 … 130 °C |
-10 … 130 °C |
-10 … 130 °C |
|
|
Temperature Compensation |
Automatically via temperature measurement in the sensor or via manual input |
|||
|
Relays |
2 x switching contacts, change-over, max. 250 VAC / 5 A |
|||
|
Current Outputs |
2 x 0(4) … 20 mA |
|||
|
Digital Interface |
Modbus / RS485 USB (for configuration, calibration, data recording) |
|||
|
Display |
OLED (128 x 64 pixel) with plain text menue |
|||
|
Data Logger |
Integrated with real time clock for 4000 datasets, storable via USB, grafical display |
|||
|
Electric Supply |
100 … 240 V AC or 18 … 36 V DC |
|||
|
Ambient Conditions |
Operational temperature: -10 … 55 °C |
|||
|
Housing Material |
Cast Aluminium for wall mounting |
|||
|
Protection Rating |
IP 65 |
|||
|
Weight |
2 kg |
|||
|
Warranty |
2 years |
|||
