Product family：
Silopilot T FMM20
Plumb bob level transmitter
Silopilot T FMM20；Approval ATEX II 1/2D IP67 T99oC；Housing Aluminium；Measuring Range/Version 32m; tape stainl. steel；Max Nozzle Height/Tape Wiper 230mm; Alu/steel；Power Supply 90-253VAC, 50/60Hz；Outpu
Order Code：FMM20-B15A1AD1C1
Name：Silopilot T FMM20

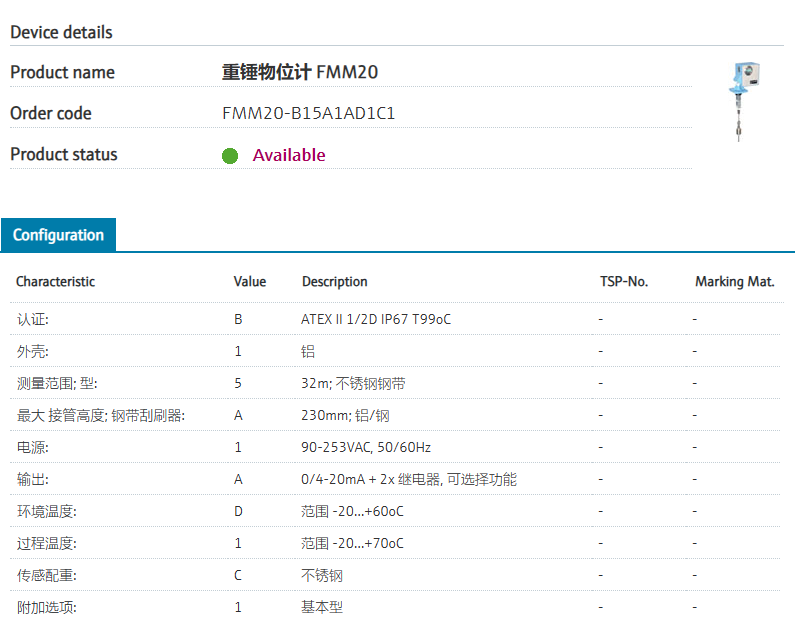

Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | B | ATEX II 1/2D IP67 T99oC |
| 020 | Housing | 1 | Aluminium |
| 030 | Measuring Range; Version | 5 | 32m; tape stainl. steel |
| 040 | Max Nozzle Height; Tape Wiper | A | 230mm; Alu/steel |
| 050 | Power Supply | 1 | 90-253VAC, 50/60Hz |
| 060 | Output | A | 0/4-20mA + 2x relay, function selectable |
| 070 | Ambient Temperature | D | Range -20...+60oC |
| 080 | Process Temperature | 1 | Range -20...+70oC |
| 090 | Sensing Weight | C | Stainl.steel |
| 100 | Additional Option | 1 | Basic version |
