Product family：
Waterpilot FMX21
Hydrostatic level transmitter (submersible)
Waterpilot FMX21；Approval Non-hazardous area；Output 4-20mA HART；Probe Tube 316L, d=22mm/0.87in；Sensor Range 600mbar/60kPa/9psi gauge, 6mH2O/20ftH2O/240inH2O；Reference Accuracy Standard；Calibration/Uni
Order Code：FMX21-AA211GGD10A
Name：Waterpilot FMX21

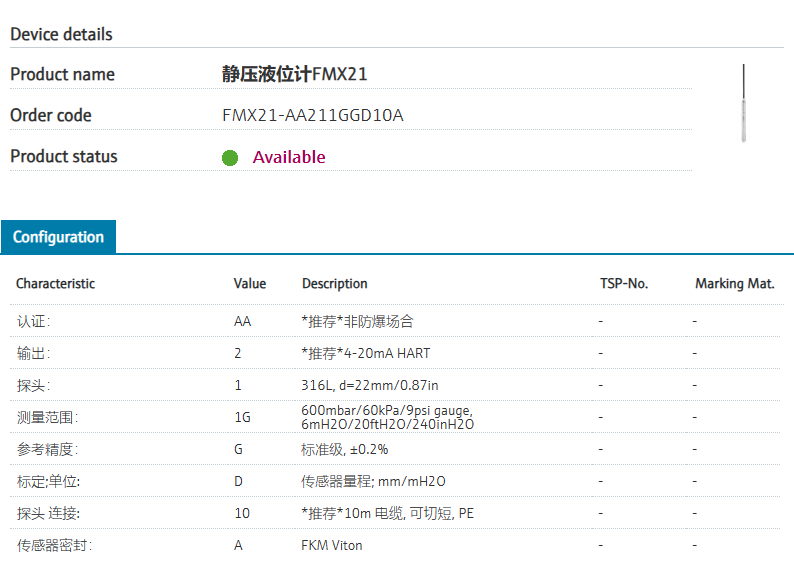

Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | AA | Non-hazardous area |
| 020 | Output | 2 | 4-20mA HART |
| 045 | Probe Tube | 1 | 316L, d=22mm/0.87in |
| 070 | Sensor Range | 1G | 600mbar/60kPa/9psi gauge, 6mH2O/20ftH2O/240inH2O |
| 080 | Reference Accuracy | G | Standard |
| 090 | Calibration; Unit | D | Sensor range; mm/mH2O |
| 100 | Probe Connection | 10 | 10m cable, shortable, PE |
| 190 | Seal | A | FKM |
