Product family：
Cerabar PMC21
Pressure transmitterIn Stock (7)
Cerabar PMC21；Approval CSA C/US General Purpose；Output 4-20mA；Electrical Connection Valve plug ISO4400 M16, IP65 NEMA Type 4X Encl.；Sensor Range 16bar/1.6MPa/240psi gauge, overload: 60bar/6MPa/900psi；
Order Code：PMC21-CA1U1QBWBJA

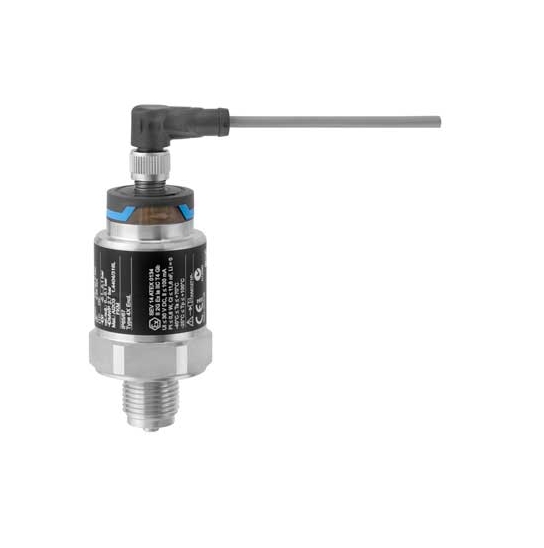

Name：Cerabar PMC21

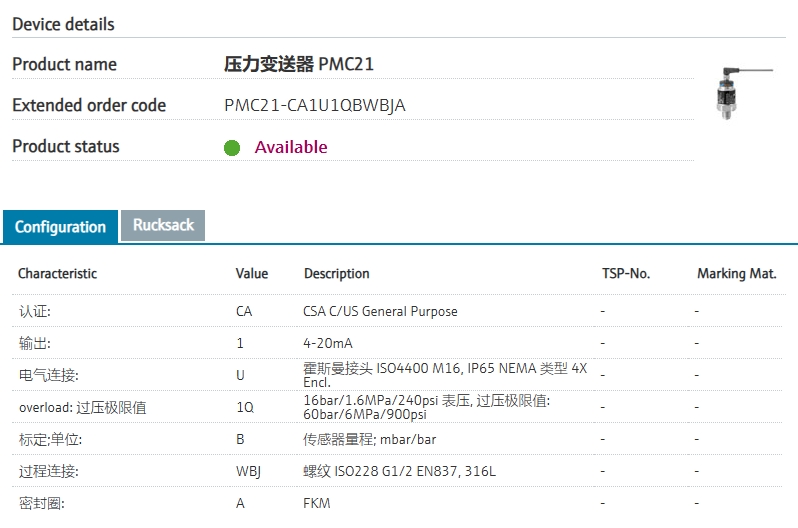

Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | CA | CSA C/US General Purpose |
| 020 | Output | 1 | 4-20mA |
| 040 | Electrical Connection | U | Valve plug ISO4400 M16, IP65 NEMA Type 4X Encl. |
| 070 | Sensor Range | 1Q | 16bar/1.6MPa/240psi gauge, overload: 60bar/6MPa/900psi |
| 090 | Calibration; Unit | B | Sensor range; mbar/bar |
| 110 | Process Connection | WBJ | Thread ISO228 G1/2 EN837, 316L |
| 190 | Seal | A | FKM |
