Product family：
Ceraphant PTP31B
Pressure switch
Ceraphant PTP31B；Approval Non-hazardous area；Output PNP, 3-wire；Electrical Connection Valve plug ISO4400 M16, IP65 NEMA Type 4X Encl.；Sensor Range 40bar/4MPa/600psi gauge, overload: 160bar/16MPa/2400p

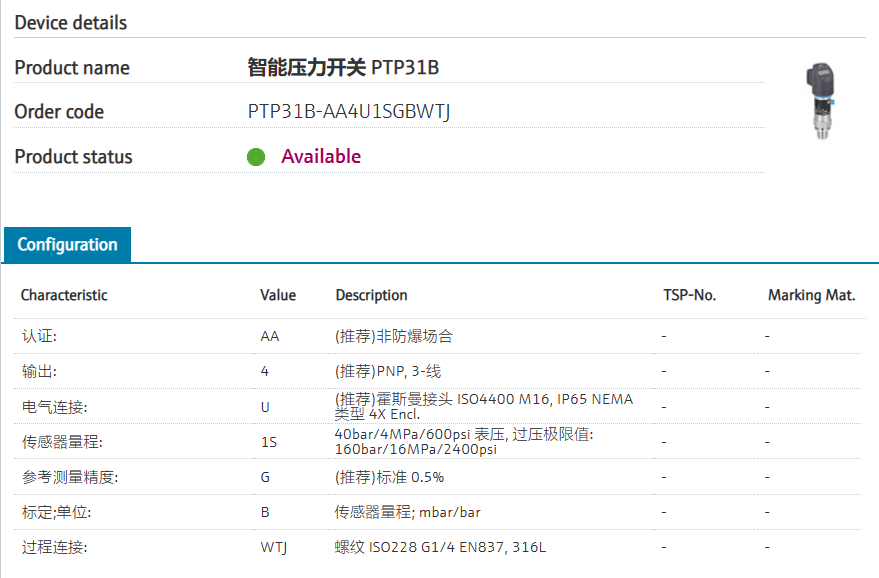

Order Code：PTP31B-AA4U1SGBWTJ
Name：Ceraphant PTP31B
Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | AA | Non-hazardous area |
| 020 | Output | 4 | PNP, 3-wire |
| 040 | Electrical Connection | U | Valve plug ISO4400 M16, IP65 NEMA Type 4X Encl. |
| 070 | Sensor Range | 1S | 40bar/4MPa/600psi gauge, overload: 160bar/16MPa/2400psi |
| 080 | Reference Accuracy | G | Standard 0.5% |
| 090 | Calibration; Unit | B | Sensor range; mbar/bar |
| 110 | Process Connection | WTJ | Thread ISO228 G1/4 EN837, 316L |
