Product family：
iTHERM TrustSens TM371
Thermometer with self-calibration
iTHERM TrustSens TM371；Approval Non-hazardous area；Thermowell Material 316L；Process Connection Varivent type N, D=68mm；Thermowell External Diameter D1 9mm；Tip Shape/External Diam. D2/Length Re Reduced
Order Code：TM371-AA1L3C4F2E0A1A
Name：iTHERM TrustSens TM371

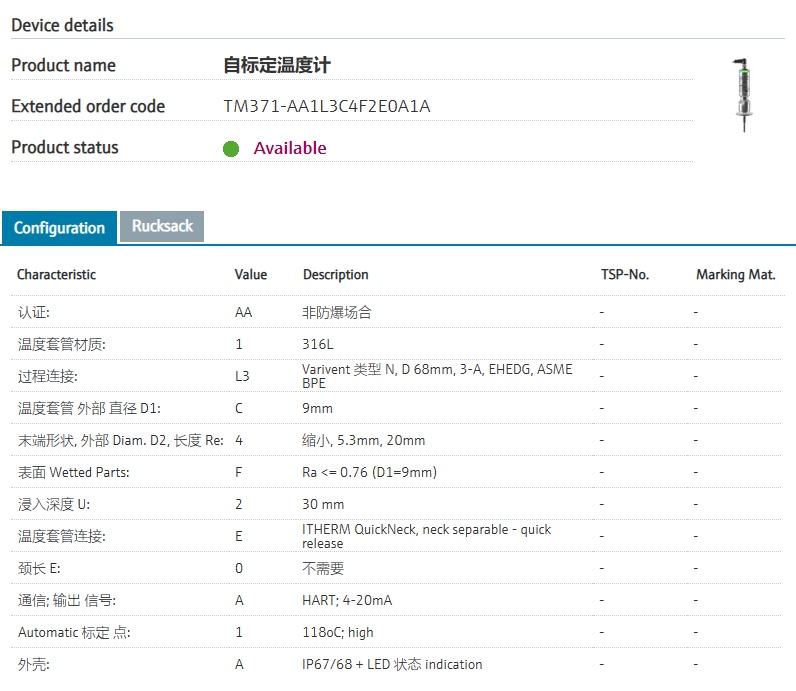

Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | AA | Non-hazardous area |
| 020 | Thermowell Material | 1 | 316L |
| 030 | Process Connection | L3 | Varivent type N, D=68mm |
| 040 | Thermowell External Diameter D1 | C | 9mm |
| 050 | Tip Shape; External Diam. D2; Length Re | 4 | Reduced; 5.3mm; 20mm |
| 060 | Surface Wetted Parts | F | Ra<=0.76 (D1=9mm) |
| 070 | Immersion Length U | 2 | 30 mm |
| 080 | Thermowell Connection | E | iTHERM QuickNeck, neck separable - quick release |
| 090 | Neck Length E | 0 | Not needed |
| 100 | Communication; Output Signal | A | HART; 4-20mA |
| 110 | Automatic Calibration Point;Uncertainty | 1 | +118oC; self-calibration with excellent uncertainty |
| 120 | Housing | A | IP65/67 + LED status indication |
