Product family：
RTD Thermometer TR11
Modular RTD thermometer
RTD Thermometer TR11；Approval Non-hazardous area；Head/Cable Entry TA30A Alu, IP66/68; M20；Pipe Diameter/Material 11 mm; DIN43772; 316L；Process Connection G1/2 male thread, 316L；Tip Shape Straight；Imme

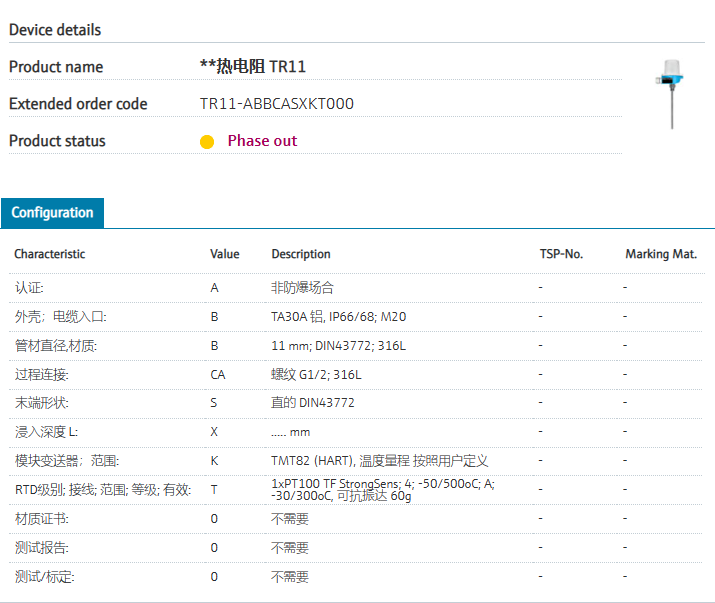

Order Code：TR11-ABBCASXKT000
Name：RTD Thermometer TR11
Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | A | Non-hazardous area |
| 020 | Head; Cable Entry | B | TA30A Alu, IP66/68; M20 |
| 030 | Pipe Diameter; Material | B | 11 mm; DIN43772; 316L |
| 040 | Process Connection | CA | G1/2 male thread, 316L |
| 050 | Tip Shape | S | Straight |
| 060 | Immersion Length L | X | ..... mm |
| 070 | Head Transmitter; Range | K | TMT82 (HART); temp. range to be spec. |
| 080 | RTD; Wire; Measuring Range; Class | T | 1xPt100 TF StrongSens;4;-50...+500oC; A; vibration resistant until 60g |
| 090 | Material Certificate | 0 | Not needed |
| 100 | Test Report | 0 | Not needed |
| 110 | Test/Calibration | 0 | Not needed |
