Field of application
Smartec CLD132 is a measuring system for inductive conductivity. The combination of a transmitter and a sensor is interference-free, easy-to-use and features a stainless steel temperature sensor that gives you an ultrafast temperature response for reliable measurement in separation applications.
Smartec CLD132 is suited to applications such as:
Alkaline/acid concentration control in remaking
Phase separation of product/water and product/product mixtures in pipe systems
Product monitoring
Smartec CLD132 features the following protocols and interfaces:
0/4...20mA
HART
PROFIBUS DP
PROFIBUS PABenefits
Engineered for quick temperature response
Low risk of soiling due to encapsulated sensor
Insensitive to polarizationConductivity:
Measuring Principle Inductive Application - Alkali/acid concentration control - phase separation in pipe systems - monitoring and control of bottle cleaning systems - product monitoring in breweries, dairies and the beverage industry - CIP system control Characteristic Compact measuring system for an inductive conductivity measurement special made for media with a high conductivity. Measuring range 100 µS/cm - 2000 mS/cm Measuring principle Inductive measuring system including transmitter and sensor. Design Compact transmitter made of stainless steel with an inductive sensor made of PEEK in a separate or compact version. Material Housing: Stainless steel 1.4301 polished Window: Polycarbonate Sensor: PEEK, stainless steel 1.4435 Sealing: Chemraz Process temperature max. 140°C (max. 30 min.)
284°F (max. 30 min.)Process pressure max. 12 bar (90°C)
(174 psi(194°F))Temperature sensor Pt100 Ex certification No Ingress protection IP67 Input One-channel transmitter incl. temperature. Output / communication Conductivity and temperature 0/4-20 mA, HART, Profibus.

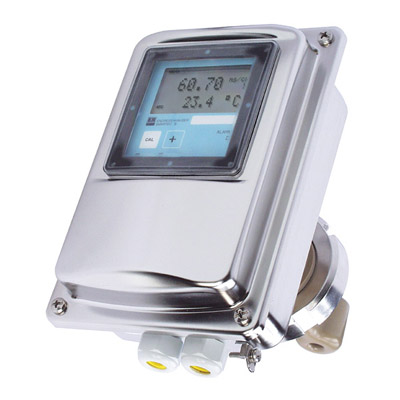

CLD132 Conductivity compact device
