Product family：
Deltapilot M FMB51
Hydrostatic level transmitter
Deltapilot M FMB51；Approval Non-hazardous area；Output 4-20mA HART；Display, Operation LCD, push button on display/electronics；Housing F31 Alu, glass window；Electrical Connection Gland M20, IP66/68 NEMA
Order Code：FMB51-AA21JA1CGA80GGJB3A
Name：Deltapilot M FMB51

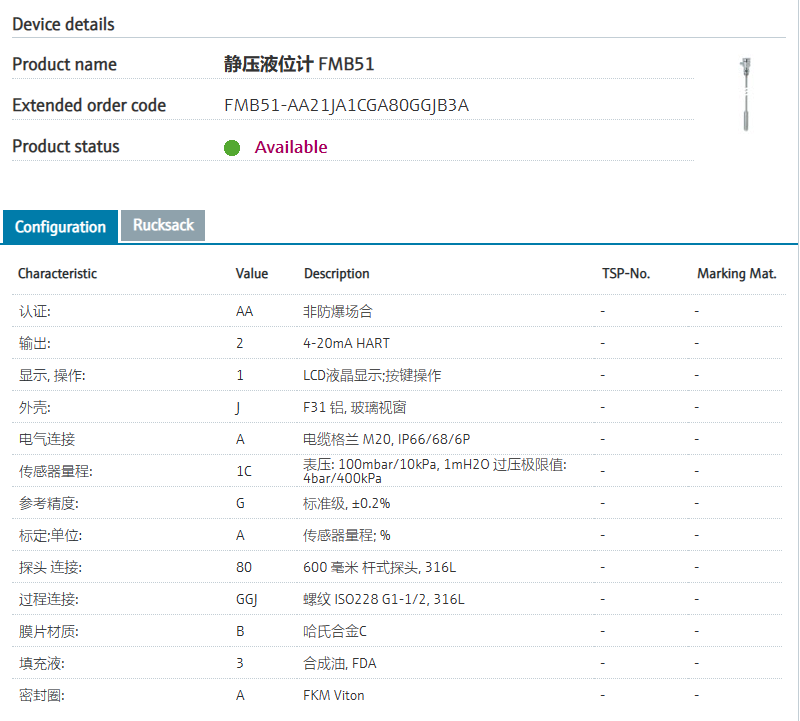

Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | AA | Non-hazardous area |
| 020 | Output | 2 | 4-20mA HART |
| 030 | Display, Operation | 1 | LCD, push button on display/electronics |
| 040 | Housing | J | F31 Alu, glass window |
| 050 | Electrical Connection | A | Gland M20, IP66/68 NEMA4X/6P |
| 070 | Sensor Range | 1C | 100mbar/10kPa/1.5psi gauge, 1mH2O/3ftH2O/40inH2O overload: 4bar/400kPa/60psi |
| 080 | Reference Accuracy | G | Standard |
| 090 | Calibration; Unit | A | Sensor range; % |
| 100 | Probe Connection | 80 | ..... mm rod, 316L |
| 110 | Process Connection | GGJ | Thread ISO228 G1-1/2, 316L |
| 170 | Membrane Material | B | AlloyC |
| 180 | Fill Fluid | 3 | Synthetic oil, FDA |
| 190 | Seal | A | FKM Viton |
