Product family：
Minicap FTC262
Capacitive limit switch
Minicap FTC262；Approval Non-hazardous area；Process Connection Thread EN10226 R1-1/2, PPS；Probe Length 2500mm/98in L, steel HD-PE insulated；Switch Output Relay 20-253VAC/20-55VDC；Housing/Cable Entry F1
Order Code：FTC262-AA44D1
Name：Minicap FTC262

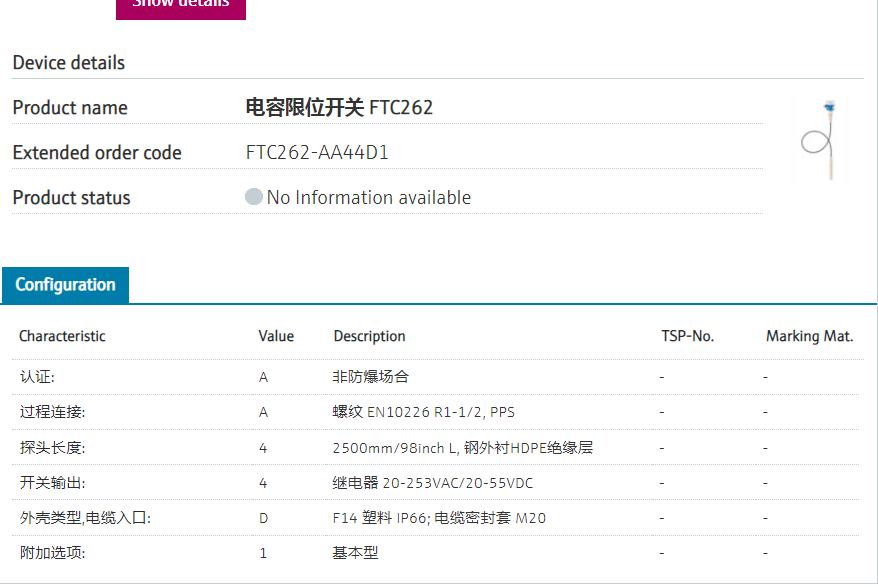

Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | A | Non-hazardous area |
| 020 | Process Connection | A | Thread EN10226 R1-1/2, PPS |
| 030 | Probe Length | 4 | 2500mm/98in L, steel HD-PE insulated |
| 040 | Switch Output | 4 | Relay 20-253VAC/20-55VDC |
| 050 | Housing; Cable Entry | D | F14 Polyester IP66; gland M20 |
| 060 | Additional Option | 1 | Basic version |
