Product family：

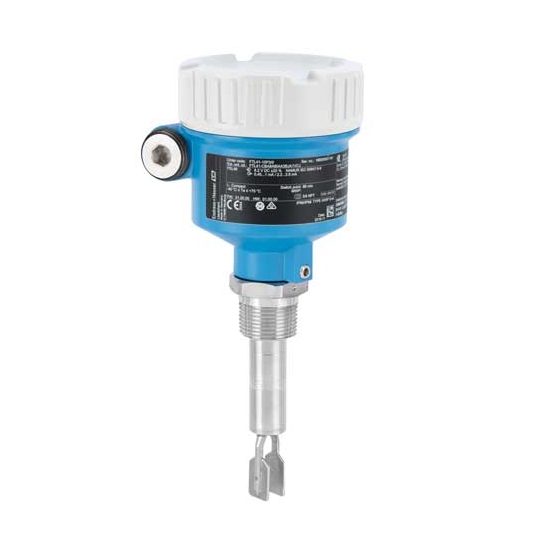

Liquiphant FTL41
Tuning fork level switch
Liquiphant FTL41；Approval NEPSI Ex ia IIC T6 Ga/Gb；Output FEL48, 2-wire NAMUR；Display/Operation W/o; switch；Housing/Material Single compartment; Alu, coated；Electrical Connection Gland M20, brass nick
Order Code：FTL41-NBA8ABBAA1AJAAADJ
Name：Liquiphant FTL41

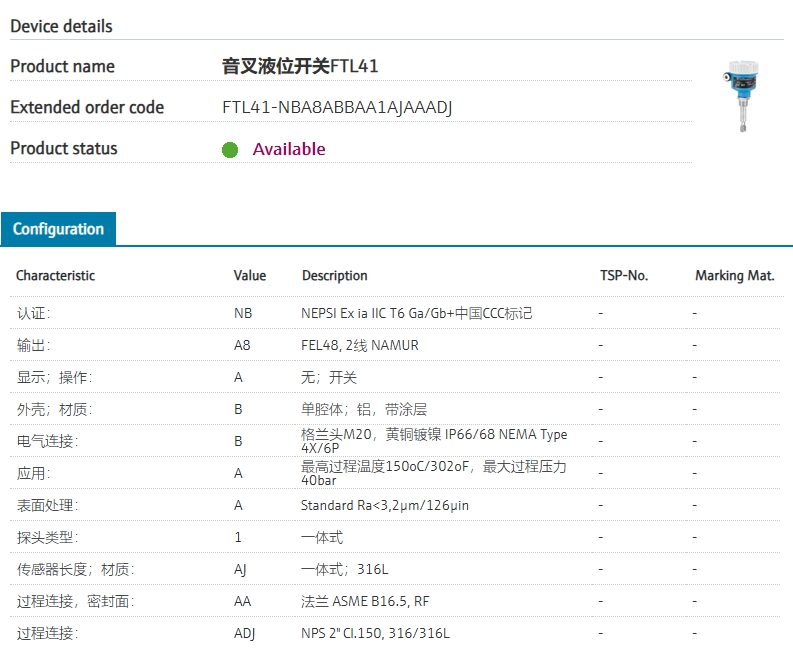

Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | NB | NEPSI Ex ia IIC T6 Ga/Gb |
| 020 | Output | A8 | FEL48, 2-wire NAMUR |
| 030 | Display; Operation | A | W/o; switch |
| 040 | Housing; Material | B | Single compartment; Alu, coated |
| 050 | Electrical Connection | B | Gland M20, brass nickel plated, IP66/68 NEMA Type 4X/6P |
| 060 | Application | A | Process max 150oC/302oF, max 40bar |
| 080 | Surface Refinement | A | Standard Ra<3,2µm/126µin |
| 085 | Type Of Probe | 1 | Compact version |
| 090 | Sensor Length; Material | AJ | Compact version; 316L |
| 105 | Process Connection, Sealing Surface | AA | Flange ASME B16.5, RF |
| 110 | Process Connection | ADJ | NPS 2" Cl.150, 316/316L |
