Product family：
Soliphant M FTM50
Tuning fork level switch
Soliphant M FTM50；Approval ATEX II 1D, 1/2D Ex ia IIIC T65oC ATEX II 1G, 1/2G Ex ia IIC T6；Process Connection Thread EN10226 R1-1/2；Material/Surface Refinement 316L; Ra<=3.2um/126uin, w/o；Fork/Bulk De
Order Code：FTM50-1GG2A8A32AA
Name：Soliphant M FTM50

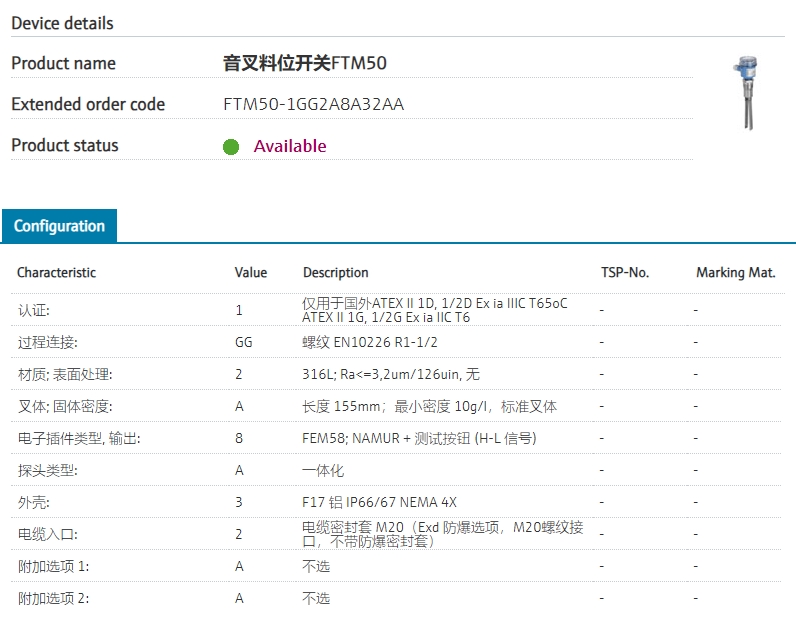

Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | 1 | ATEX II 1D, 1/2D Ex ia IIIC T65oC ATEX II 1G, 1/2G Ex ia IIC T6 |
| 020 | Process Connection | GG | Thread EN10226 R1-1/2 |
| 030 | Material; Surface Refinement | 2 | 316L; Ra<=3.2um/126uin, w/o |
| 040 | Fork; Bulk Density | A | 155mm/6in; min 10g/l standard fork |
| 050 | Electronics; Output | 8 | FEM58; NAMUR + test button (H-L signal) |
| 060 | Type of Probe | A | Compact |
| 070 | Housing | 3 | F17 Alu IP66/67 NEMA Type 4X Encl. |
| 080 | Cable Entry | 2 | Gland M20 (Ex d > thread M20) |
| 090 | Additional Option 1 | A | Not selected |
| 100 | Additional Option 2 | A | Not selected |
