Product family：
Soliphant M FTM50
Tuning fork level switchIn Stock (1)
Soliphant M FTM50；Approval ATEX II 3D Ex tc IIIC Dc ATEX II 3G Ex ec IIC T6 Gc；Process Connection Thread EN10226 R1-1/2；Material/Surface Refinement 316L; Ra<=3.2um/126uin, w/o；Fork/Bulk Density 155mm/
Order Code：FTM50-3GG2A2A52AA
Name：Soliphant M FTM50

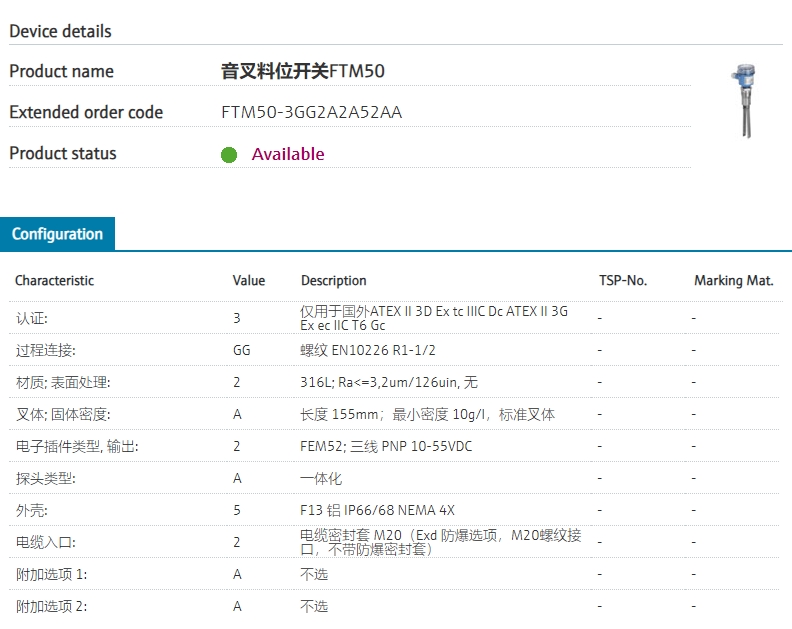

Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | 3 | ATEX II 3D Ex tc IIIC Dc ATEX II 3G Ex ec IIC T6 Gc |
| 020 | Process Connection | GG | Thread EN10226 R1-1/2 |
| 030 | Material; Surface Refinement | 2 | 316L; Ra<=3.2um/126uin, w/o |
| 040 | Fork; Bulk Density | A | 155mm/6in; min 10g/l standard fork |
| 050 | Electronics; Output | 2 | FEM52; 3-wire PNP 10-55VDC |
| 060 | Type of Probe | A | Compact |
| 070 | Housing | 5 | F13 Alu IP66/68 NEMA Type 4X Encl. |
| 080 | Cable Entry | 2 | Gland M20 (Ex d > thread M20) |
| 090 | Additional Option 1 | A | Not selected |
| 100 | Additional Option 2 | A | Not selected |
