Product family：
Deltabar S PMD75
Differential pressure transmitterIn Stock (1)
Deltabar S PMD75；Approval Non-hazardous area；Output/Operating 4-20mA HART; inside；Housing/Cover Sealing/Cable Entry T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread)；Nomina
Order Code：PMD75-ACA7BB1DAUA

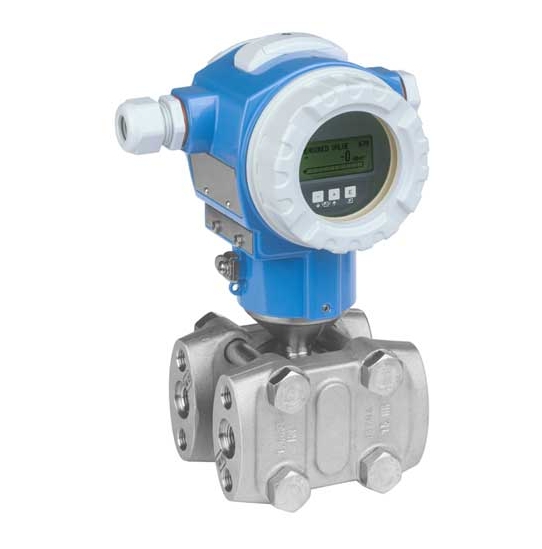

Name：Deltabar S PMD75

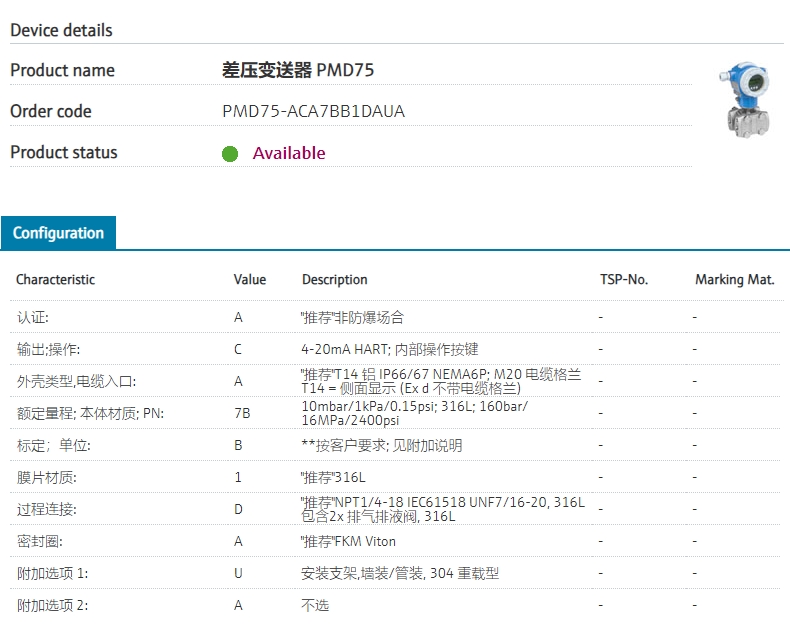

Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | A | Non-hazardous area |
| 020 | Output; Operating | C | 4-20mA HART; inside |
| 030 | Housing; Cover Sealing; Cable Entry | A | T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread) |
| 040 | Nominal Range; Cell Material; PN | 7B | 10mbar/1kPa/0.15psi; 316L; 160bar/ 16MPa/2400psi |
| 050 | Calibration; Unit | B | **Customised; see additional spec. |
| 060 | Membrane Material | 1 | 316L |
| 070 | Process Connection | D | NPT1/4-18 IEC61518 UNF7/16-20, 316L incl. 2 valves, 316L |
| 080 | Seal | A | FKM Viton |
| 100 | Additional Option 1 | U | Mounting bracket, wall/pipe, 316L, heavy duty design |
| 110 | Additional Option 2 | A | Not selected |
