Product family：

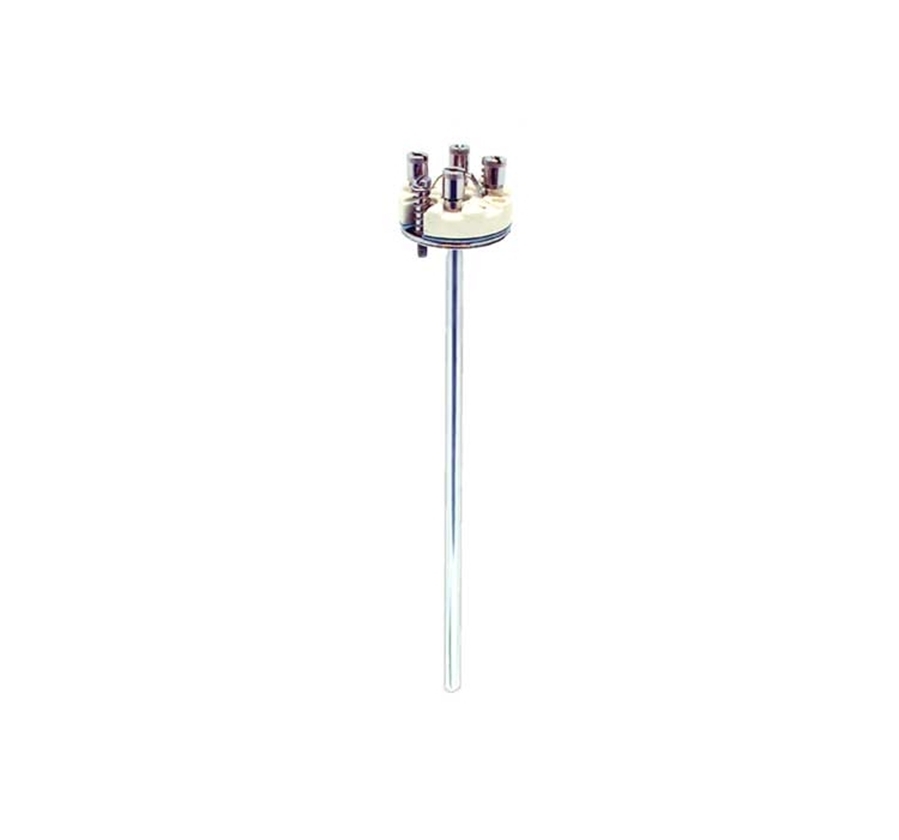

Insert TPR100
RTD insertIn Stock (1)
Insert TPR100；Approval UK II1D Ex ia IIIC Da, II1G Ex ia IIC T6 Ga；Insertion Length IL ..... mm；Insert Diameter 3mm; 316L；Head Transmitter/Range Flying leads；RTD/Wire/Measuring Range/Class 1x Pt100 WW
Order Code：TPR100-QXX1FC000
Name：Insert TPR100

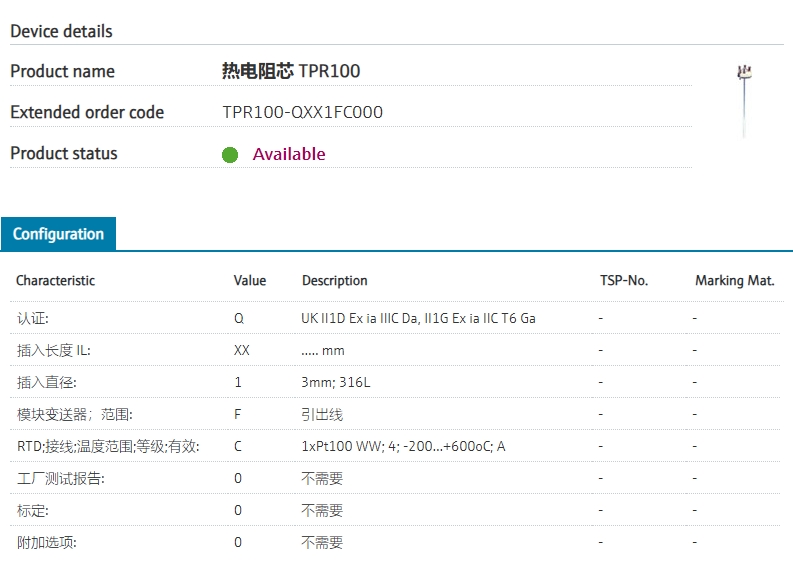

Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | Q | UK II1D Ex ia IIIC Da, II1G Ex ia IIC T6 Ga |
| 020 | Insertion Length IL | XX | ..... mm |
| 030 | Insert Diameter | 1 | 3mm; 316L |
| 040 | Head Transmitter; Range | F | Flying leads |
| 050 | RTD; Wire; Measuring Range; Class | C | 1x Pt100 WW; 4; -200...+600oC; A |
| 060 | Factory Test Report | 0 | Not needed |
| 070 | Calibration | 0 | Not needed |
| 080 | Additional Option | 0 | Not needed |
