Conductivity [EC]: 0.001 to 999.9 µS/cm, 1.000 to 1000.0 mS/cm,
Total Dissolved Solids [TDS]: 0.00 to 999.9 mg/L (ppm) ppm, 1.000 to 400.0 g/L (ppt);
Resistivity: 1.0 to 100.0 MOhms•cm
Practical salinity: 0.00 to 42.00 PSU, seawater salinity: 0.00 to 80.00 ppt (g/L), salinity: 0.0 to 400.0% NaCl; Temperature: -20.0 to 120.0°C, -4.0 to 248.0°F
-

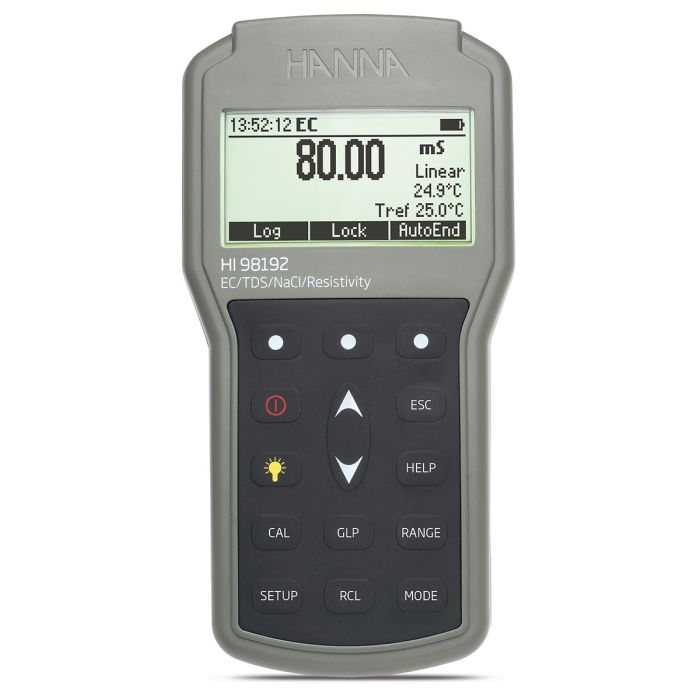

High-precision professional EC-TDS-NaCl-°C/ºF/K meter, extra-large LCD display, fast and accurate measurement of routine water quality indicators such as conductivity EC-resistivity-total dissolved solids TDS-practical salinity (PSU)-seawater salinity-salinity (NaCl%)-temperature, automatic range recognition and unit conversion;
-
New exterior design, on-screen calibration procedure prompts, GLP function, quick query of relevant data, USP (645) compliant with international pharmacopoeia measurement specifications, automatic recognition calibration and user-defined calibration, automatic endpoint locking function, USB data interface, large-capacity data storage, good data management.
-
New exterior design, large screen display, backlight, on-screen operation step prompts, multiple optional languages
-
0.001μS/cm to 100mS/cm, automatic resolution selection, automatic electrode recognition
-
USP <645> three-step conductivity analysis standard, compliant with pharmacopoeia measurement specifications
-
Direct access to GLP management data, including calibration points, calibration time and other information
-
Linear and non-linear temperature compensation, three salinity measurement range options
-
Practical salinity, seawater salinity (psu), salinity (%), salinity
-
Data storage, USB data interface, storage interval from 5 seconds to 180 minutes, convenient data management
-
Novel design housing, designed for on-site determination, excellent waterproof performance
| Conductivity | Measuring range | 0 to 400mS/cm (displays reagent conductivity up to 1000mS/cm) **0.001 to 9.999μS/cm*, 10.00 to 99.99μS/cm, |
| 100.0 to 999.9μS/cm, 1.000 to 9.999mS/cm, 10.00 to 99.99mS/cm, 100.0 to 1000.0mS/cm (actual conductivity) | ||
| Resolution | 0.001μS/cm; 0.01μS/cm; 0.1μS/cm; 0.001mS/cm; 0.01mS/cm; 0.1mS/cm | |
| Accuracy | ±1% (±0.01μS/cm or 1 digit), whichever is greater | |
| Calibration mode | Five-point automatic recognition calibration, selectable calibration points: 0, 84, 1413μS/cm, 5.00, 12.88, 80.0, 118.8mS/cm | |
| Total Dissolved Solids TDS | Measuring range | 0.00 to 99.99mg/L (ppm), 100.0 to 999.9mg/L (ppm), 1000 to 9.999g/L (ppt), 10.00 to 99.99g/L (ppt) 100.0 to |
| 400.0g/L (ppt) (actual total dissolved solids) | ||
| Resolution | 0.01, 0.1mg/L (ppm), 0.001, 0.01, 0.1g/L (ppt) | |
| Accuracy | Reading ±1% (±0.05mg/L or 1 digit), whichever is greater | |
| Resistivity | Measuring range | 1.0 to t 99.9Ω·cm, 100 to 999Ω·cm, 1.0 to 9.99KΩ·cm, 10.0 to 99.9KΩ·cm, 100 to 999KΩ·cm |
| 1.00 to 9.99MΩ·cm, 10.0 to 100.0MΩ·cm (actual resistivity) | ||
| Resolution | 0.1, 1.0Ω.cm; 0.01, 0.1, 1KΩ·cm; 0.01, 0.1MΩ.cm* | |
| Accuracy | Reading ±1% (±10.0Ω or 1 digit), whichever is greater | |
| Salinity | Measuring range | Practical salinity: 0.00 to 42.00 PSU; seawater salinity: 0.00 to 80.00ppt (g/L); %NaCl: 0.0 to 400.0% |
| Salinity | 0.0 to 400.0 NaCl | |
| Resolution | 0.1%; 0.01 | |
| Accuracy | Reading ±0.1% | |
| Calibration mode | Single-point calibration (% salinity calibration can use HI7037 salinity calibration solution); for salinity calibration in other units, no further calibration is required based on the conductivity calibration result | |
| Temperature | Measuring range | -20.0 to 120.0℃, -4.0 to 248.0℉ |
| Resolution | 0.1℃; 0.1℉ | |
| Accuracy | ±0.2℃, ±0.4℉ (ignoring temperature probe error) | |
| Calibration mode | One-point or two-point calibration | |
| Other technical specifications | Conductivity constant | 0.010 to 10.000 |
| Temperature compensation | Linear temperature compensation: -20.0 to 120.0℃; -4.0 to 248.0℉ | |
| Non-linear temperature compensation: 0 to 36℃; 32 to 98.6℉, ISO/DIS 7888 standard | ||
| Reference temperature | 15℃, 20℃ and 25℃ | |
| Temperature coefficient | 0.00 to 10.00%/℃ | |
| TDS factor | 0.40 to 1.00 | |
| Standard electrode | HI763133 four-ring platinum EC/TDS electrode with built-in temperature sensor, DIN connector, 1m cable length | |
| Data storage | Manual storage: 400 data sets, interval storage up to 1000 data sets, storage time: 5, 10, 30sec, 1, 2, 5, 10, 15, 30, 60, | |
| 120, 180min measurement curve storage: up to 10 | ||
| Measurement mode | Automatic range selection, automatic endpoint locking | |
| Data interface | USB data interface (HI92000-15 data management software package recommended) | |
| Power supply | 4*1.5V AA batteries | |
| Auto power-off setting | Set standby time: 5, 10, 30, 60 minutes and no auto power-off mode | |
| Operating environment | 0 to 50℃ (32 to 122 F); RH 100% IP67 waterproof standard | |
| Dimensions/Weight | 185*93*35.2mm/400g |
