Product family：
SEKO solenoid-driven diaphragm pump
SEKO solenoid diaphragm pump
EMM600NNHP08B00 Tekba SEKO solenoid diaphragm pump
Pressure: 20/18/14/8 bar, flow rate: 2.5/3/4.2/7 L/h
Wetted materials: PVDF (pump head), PTFE (diaphragm), FPM (seal), ceramic (valve ball)
EMM: automatic flow adjustment, with level probe interface, with operating status display (controlled by an external 4-20 mA current signal)
SEKO Tekba Series
EMM600NNHP08B00 Electromagnetic Diaphragm Metering Pump

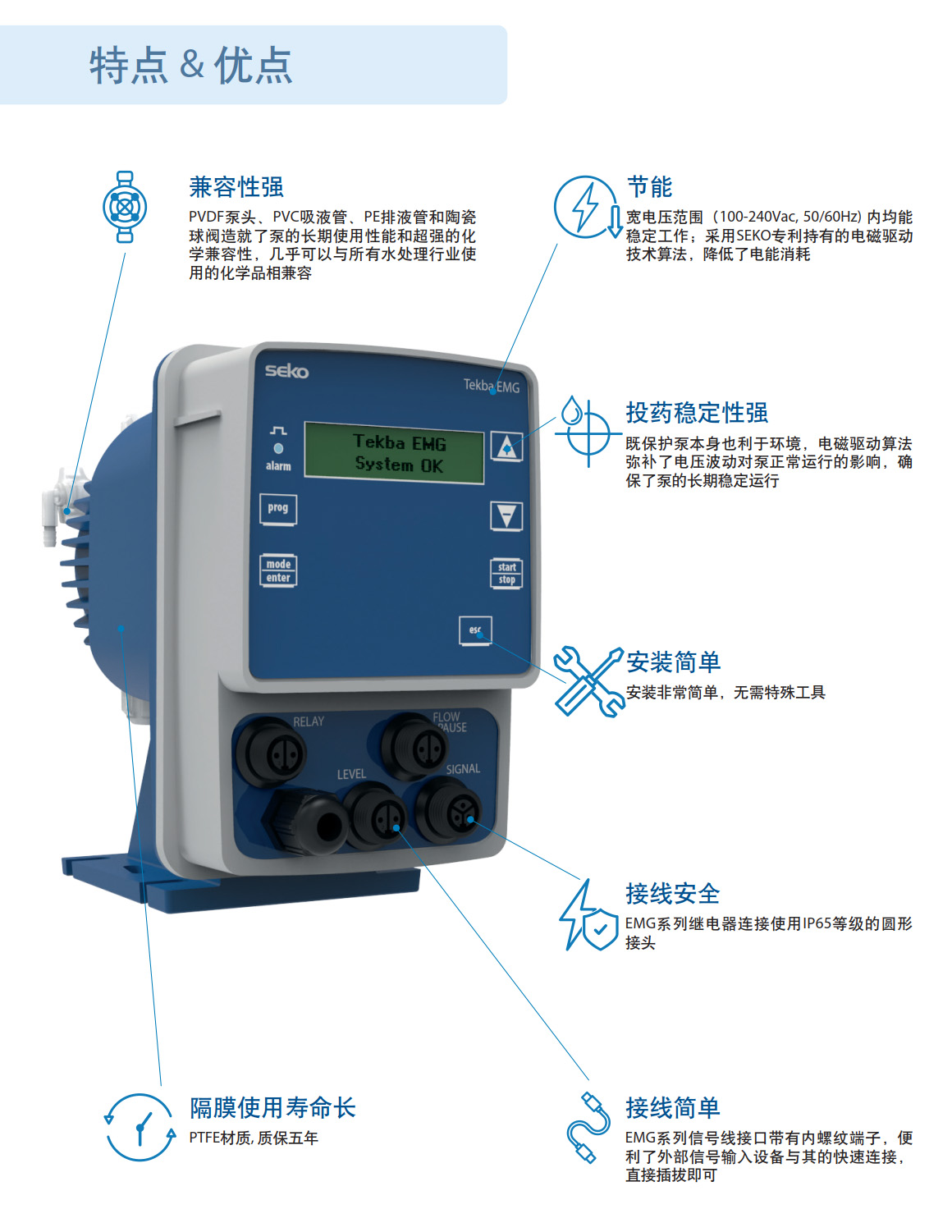

The Tekba series is a microprocessor-controlled digital display electromagnetic drive diaphragm pump, featuring simple operation and stable performance. It includes five sub-series: EMS, EML, EMC, EMM and EMG.
Key Features:
- Pressure: 20/18/14/8 Bar, Flow rate: 2.5/3/4.2/7 L/H
Applications:
- Municipal water treatment and wastewater treatment, chlorine dioxide dosing, reverse osmosis, food, beverage and pharmaceutical industries, etc.
High Compatibility:
- PVDF pump head and ceramic ball valves are standard configuration for the pump
- The PVDF pump head is compatible with almost all chemicals used in industrial, wastewater treatment and drinking water applications; the use of ceramic ball valves improves dosing reliability and the chemical compatibility of the entire wetted end.
Reliable Performance:
- Tested diaphragm service life exceeds 5 years. Advanced design concepts and excellent manufacturing processes result in the extremely long service life of the diaphragm. The diaphragm is made of pure solid PTFE material and is compatible with the vast majority of chemicals.
Dosing Modes:
- Multifunctional models with multiple selectable automatic control methods. EML, EMC, EMM and EMG feature a level probe interface, and a manual bleed valve assists in priming the pump.
Wetted End Materials:
- Pump head: PVDF
- Valve ball: Ceramic
- Seal: FPM
- Diaphragm: PTFE
Installation Method:
- Horizontal installation
|
Tekba Series |
|||||||||
 |
|
||||||||
Technical Parameters:
| Series | |||||||||
| EMS | Digital display | Manual flow adjustment | |||||||
| EML | Manual flow adjustment, with level probe interface | ||||||||
| EMC | Manual flow adjustment / Automatic adjustment, with level probe interface (controlled by external digital pulse signal input) | ||||||||
| EMM | Manual flow adjustment / Automatic adjustment, with level probe interface (controlled by external analog signal 4-20mA current signal input) | ||||||||
| EMG | Multifunctional model, multiple selectable automatic control methods | ||||||||
| Model | Pressure | Flow rate | Stroke volume | Connection tube size ID/OD [mm] | Stroke frequency | Power | Gross weight | Carton dimensions | |
| [bar] | [L/h] | [mL/stroke] | [strokes/min] | [W] | [kg] | [L×W×H][mm] | |||
| 600 | 20 | 2.5 | 0.35 | 4 / 6 suction 4 / 7 discharge | 120 | 20 | 3.9 | 285*250*210 | |
| 18 | 3 | 0.42 | |||||||
| 14 | 4.2 | 0.58 | |||||||
| 8 | 7 | 0.97 | |||||||
| 603 | 12 | 4 | 0.42 | 4/6 | 160 | 20 | 3.4 | ||
| 10 | 5 | 0.52 | |||||||
| 8 | 6 | 0.63 | |||||||
| 2 | 8 | 0.83 | |||||||
| 800 | 16 | 7 | 0.38 | 4/6 | 300 | 40 | 4.4 | ||
| 10 | 10 | 0.55 | |||||||
| 5 | 15 | 0.83 | |||||||
| 1 | 18 | 1 | |||||||
| 803 | 5 | 20 | 1.11 | 8/12 | 300 | 40 | 4.4 | ||
| 4 | 32 | 1.78 | |||||||
| 2 | 62 | 3.44 | |||||||
| 0.1 | 110 | 6.11 | |||||||
Model Code:
| Series | Tekba | |||||||||
| EMS | Manual flow adjustment | |||||||||
| EML | Manual flow adjustment, with level probe interface | |||||||||
| EMC | Manual flow adjustment / Proportional flow adjustment, with level probe interface , flow proportional adjustment via external digital pulse signal | |||||||||
| EMM | Manual flow adjustment / Proportional flow adjustment, with level probe interface, flow proportional adjustment via external analog signal (0/4-20mA current signal) or digital pulse signal | |||||||||
| EMG | Multifunctional model, multiple selectable automatic control methods | |||||||||
| Model | Pressure (bar) | Flow rate (L/H) | Stroke volume (mL/stroke) |
Connection tube size ID/OD (mm) |
Max. frequency (strokes/min) |
Power (W) | Weight (KG) | Carton dimensions L×W×H (mm) |
||
| 600 | 20 | 2.5 | 0.35 | 4 / 6 suction 4 / 7 discharge | 120 | 20 | 3.9 | 290X255X220 | ||
| 18 | 3 | 0.42 | ||||||||
| 14 | 4.2 | 0.58 | ||||||||
| 8 | 7 | 0.97 | ||||||||
| 603 | 12 | 4 | 0.42 | 4/6 | 160 | 20 | 3.4 | |||
| 10 | 5 | 0.52 | ||||||||
| 8 | 6 | 0.63 | ||||||||
| 2 | 8 | 0.83 | ||||||||
| 800 | 16 | 7 | 0.38 | 4/6 | 300 | 40 | 4.4 | |||
| 10 | 10 | 0.55 | ||||||||
| 5 | 15 | 0.83 | ||||||||
| 1 | 18 | 1 | ||||||||
| 803 | 5 | 20 | 1.11 | 8/12 | 300 | 40 | 4.4 | |||
| 4 | 32 | 1.78 | ||||||||
| 2 | 62 | 3.44 | ||||||||
| 0.1 | 110 | 6.11 | ||||||||
| Stroke length adjustment | ||||||||||
| N | Monotonic (stroke frequency) | |||||||||
| Power supply | ||||||||||
| N | 100-240Vac,50/60Hz | |||||||||
| Wetted end materials | Pump head | Valve ball | Diaphragm | |||||||
| H | PVDF | Ceramic | PTFE | |||||||
| Installation accessories | ||||||||||
| P | PVDF | |||||||||
| Seal ring | ||||||||||
| 0 | FPM | |||||||||
| 1 | EPDM | |||||||||
| 2 | PTFE | |||||||||
| Color | Rear | Front | ||||||||
| 8 | Standard | RAL7004 | RAL5010 | |||||||
| Signal interface | ||||||||||
| 0 | Standard | |||||||||
| W | WIFI | |||||||||
| M | Modbus RTU RS485 | |||||||||
| Customization | ||||||||||
| 0 | Standard | |||||||||
| EML | 600 | N | N | H | P | 0 | 8 | 0 | 0 | |
