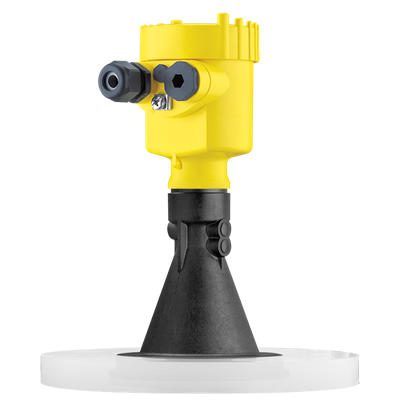

VEGAPULS 67

Name: PS67.XXBYDPAMXX
Brand: VEGA
SKU: PS67.XXBYDPAMXX
Availability: InStock

VEGA PS67.XXBYDPAMXX

Belongs to VEGAPULS 67（PS67）

PS67.XXBYDPAMXX；Approval without；Version / Material / Process temperature with plastic horn antenna (ø80mm) / PP / -40...+80°C；Process fitting / Material Compression flange suitable for flanges 3" 150

Get Quote Back

Order Code：PS67.XXBYDPAMXX

Name：PS67.XXBYDPAMXX

Configuration

Code	Name	Order	Specification
030	Approval	XX	without
050	Version / Material / Process temperature	B	with plastic horn antenna (ø80mm) / PP / -40...+80°C
060	Process fitting / Material	YD	Compression flange suitable for flanges 3" 150lb, DN80 PN16 / PP-GF30
070	Electronics	P	Two-wire Profibus PA
110	Housing / Protection	A	Aluminium single chamber / IP66/IP68 (0.2bar)
130	Cable entry / Cable gland / Plug connection	M	M20x1.5 / with / without
140	Display/Adjustment module PLICSCOM	X	without
160	Additional equipment	X	without

2 models · click to expand

Model	Name
PS67.XXBYDPAMXX	VEGAPULS 67
PS67.XXBXCPANXX	VEGAPULS 67
