Product family：
Cerabar M PMC51
Pressure transmitter
Cerabar M PMC51；Approval Non-hazardous area；Output 4-20mA；Display, Operation LCD, push button on display/electronics；Housing **F31 Alu, glass window；Electrical Connection Gland M20, IP66/68 NEMA4X/6P；
Order Code：PMC51-AA11JA1CGCGMJA
Name：Cerabar M PMC51

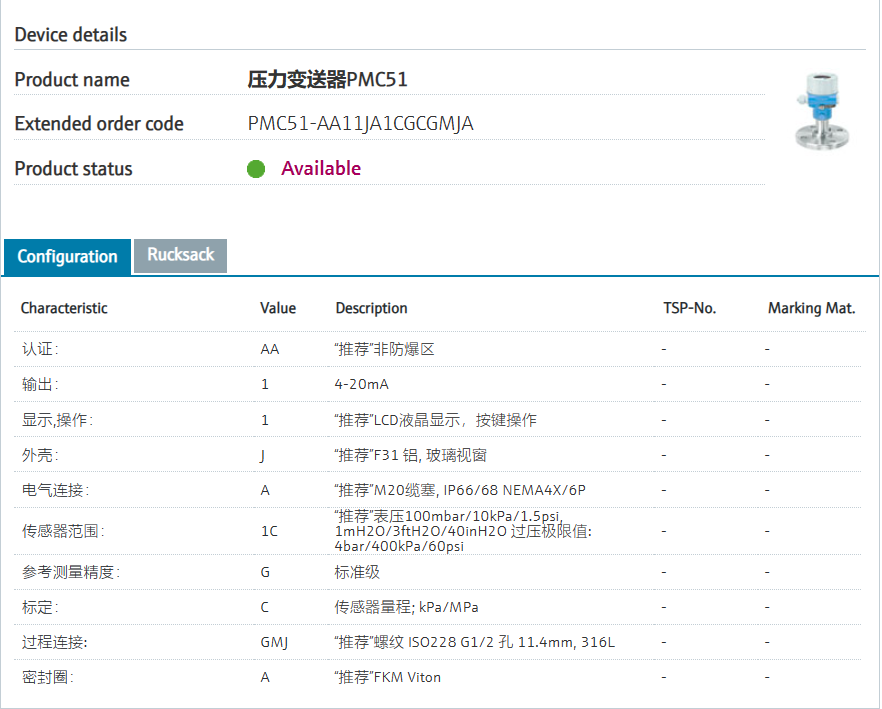

Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | AA | Non-hazardous area |
| 020 | Output | 1 | 4-20mA |
| 030 | Display, Operation | 1 | LCD, push button on display/electronics |
| 040 | Housing | J | **F31 Alu, glass window |
| 050 | Electrical Connection | A | Gland M20, IP66/68 NEMA4X/6P |
| 070 | Sensor Range | 1C | 100mbar/10kPa/1.5psi gauge, 1mH2O/3ftH2O/40inH2O overload: 4bar/400kPa/60psi |
| 080 | Reference Accuracy | G | Standard |
| 090 | Calibration; Unit | C | Sensor range; kPa/MPa |
| 110 | Process Connection | GMJ | Thread ISO228 G1/2 hole 11.4mm, 316L |
| 190 | Seal | A | FKM |
