Product family：
Cerabar S PMC71
Pressure transmitter
Cerabar S PMC71；Approval CSA C/US IS Cl.I,II,III Div.1 Gr.A-G, Cl.I Div.2 Gr.A-D, Ex ia, C: zone 0,1,2/ US: zone 0,1,2,20,21,22；Output/Operating 4-20mA HART; inside + LCD；Housing/Cover Sealing/Cable E
Order Code：PMC71-UBA1PBGHBAZ
Name：Cerabar S PMC71

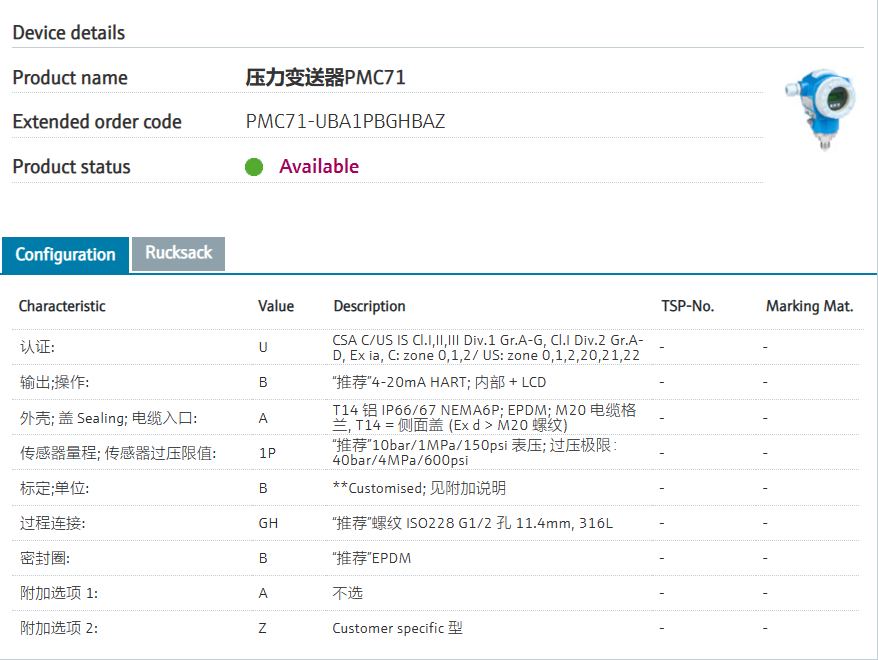

Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | U | CSA C/US IS Cl.I,II,III Div.1 Gr.A-G, Cl.I Div.2 Gr.A-D, Ex ia, C: zone 0,1,2/ US: zone 0,1,2,20,21,22 |
| 020 | Output; Operating | B | 4-20mA HART; inside + LCD |
| 030 | Housing; Cover Sealing; Cable Entry | A | **T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread) |
| 040 | Sensor Range; Sensor Overload Limit | 1P | 10bar/1MPa/150psi gauge; 40bar/4MPa/600psi |
| 050 | Calibration; Unit | B | **Customised; see additional spec. |
| 070 | Process Connection | GH | Thread ISO228 G1/2 hole 11.4mm, 316L |
| 080 | Seal | B | EPDM |
| 100 | Additional Option 1 | A | Not selected |
| 110 | Additional Option 2 | Z | Customer specific version |
