Product family：
Deltabar M PMD55
Differential pressure transmitter
Deltabar M PMD55；Approval Non-hazardous area；Output 4-20mA HART；Display, Operation W/o LCD, push button on electronics；Housing F30 Alu；Electrical Connection Gland M20, IP66/67 NEMA4X/6P；Nominal Pressu

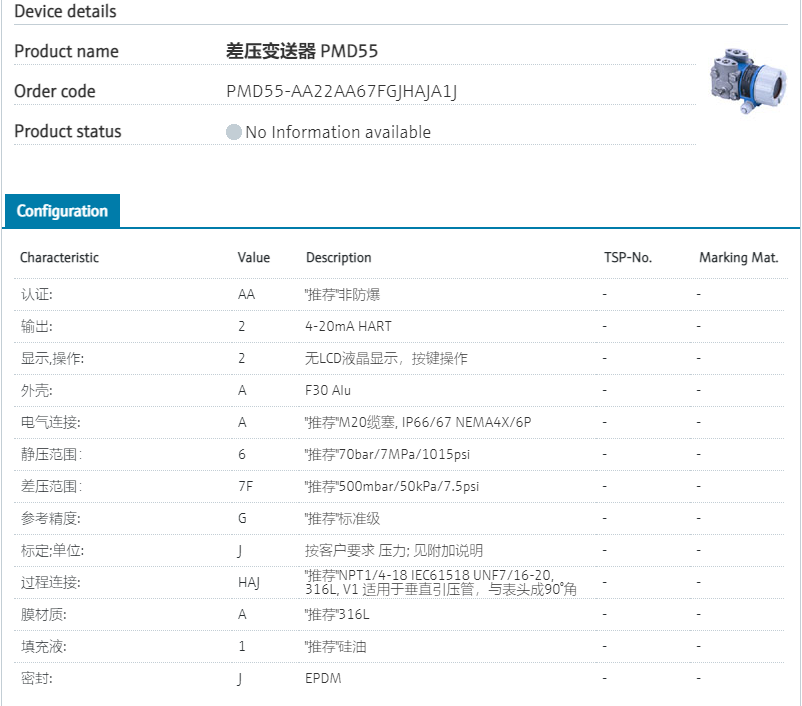

Order Code：PMD55-AA22AA67FGJHAJA1J
Name：Deltabar M PMD55
Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | AA | Non-hazardous area |
| 020 | Output | 2 | 4-20mA HART |
| 030 | Display, Operation | 2 | W/o LCD, push button on electronics |
| 040 | Housing | A | F30 Alu |
| 050 | Electrical Connection | A | Gland M20, IP66/67 NEMA4X/6P |
| 060 | Nominal Pressure PN | 6 | 70bar/7MPa/1015psi |
| 070 | Sensor Nominal Value | 7F | 500mbar/50kPa/7.5psi |
| 080 | Reference Accuracy | G | Standard |
| 090 | Calibration; Unit | J | Customised Pressure; see additional spec. |
| 110 | Process Connection | HAJ | NPT1/4-18 IEC61518 UNF7/16-20, 316L, V1 Installation impulse line vertical Alignment 90deg |
| 170 | Membrane Material | A | 316L |
| 180 | Fill Fluid | 1 | Silicone oil |
| 190 | Seal | J | EPDM |
