Product family：
Cerabar S PMP71
Pressure transmitterIn Stock (6)
Cerabar S PMP71；Approval Non-hazardous area；Output/Operating 4-20mA HART; inside + LCD；Housing/Cover Sealing/Cable Entry T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread)；S

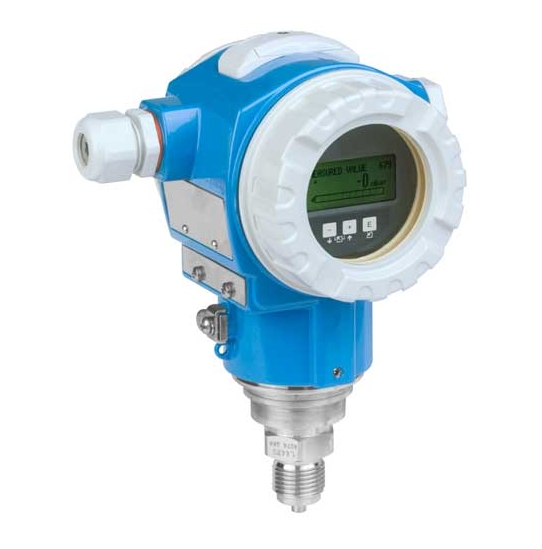

Order Code：PMP71-ABA1P22GPAAA
Name：Cerabar S PMP71
Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | A | Non-hazardous area |
| 020 | Output; Operating | B | 4-20mA HART; inside + LCD |
| 030 | Housing; Cover Sealing; Cable Entry | A | T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread) |
| 040 | Sensor Range; Sensor Overload Limit | 1P | 10bar/1MPa/150psi gauge; 40bar/4MPa/600psi |
| 050 | Calibration; Unit | 2 | Sensor range; kPa/MPa |
| 060 | Membrane Material | 2 | AlloyC276 |
| 070 | Process Connection | GP | Thread DIN13 M20x1.5, 316L, hole 11.4mm |
| 090 | Fill Fluid | A | Silicone oil |
| 100 | Additional Option 1 | A | Not selected |
| 110 | Additional Option 2 | A | Not selected |
