Product family：
Cerabar S PMP71
Pressure transmitter
Cerabar S PMP71；Approval Non-hazardous area；Output/Operating 4-20mA HART; inside + LCD；Housing/Cover Sealing/Cable Entry T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread)；S

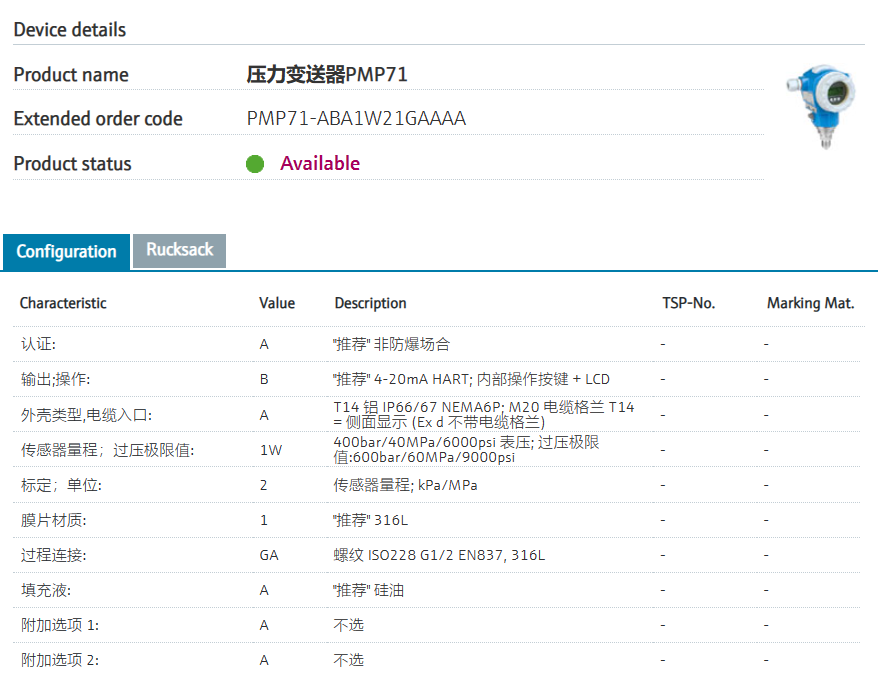

Order Code：PMP71-ABA1W21GAAAA
Name：Cerabar S PMP71
Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | A | Non-hazardous area |
| 020 | Output; Operating | B | 4-20mA HART; inside + LCD |
| 030 | Housing; Cover Sealing; Cable Entry | A | T14 Alu IP66/67 NEMA6P; EPDM; M20 gland, T14 = side cover (Ex d > M20 thread) |
| 040 | Sensor Range; Sensor Overload Limit | 1W | 400bar/40MPa/6000psi gauge; 600bar/60MPa/9000psi |
| 050 | Calibration; Unit | 2 | Sensor range; kPa/MPa |
| 060 | Membrane Material | 1 | 316L |
| 070 | Process Connection | GA | Thread ISO228 G1/2 EN837, 316L |
| 090 | Fill Fluid | A | Silicone oil |
| 100 | Additional Option 1 | A | Not selected |
| 110 | Additional Option 2 | A | Not selected |
