Pressure transmitter
Pressure transmitter;Scope Europe;Approval for Ex-free area (incl. Ordinary Location approval);Version / Process temperature Connection tube 316L / -12...+100°C;Process fitting / Material Thread G1½, DIN3852-A / 316L;Transmitter options without;Pressure Relative pressure (measurement against atmosphere);Measuring range 0...+0.4bar (0...+40kPa);Electronics Two-wire 4 ... 20 mA/HART;Supplementary electronics without;Housing Plastic single chamber;Housing version / Protection co

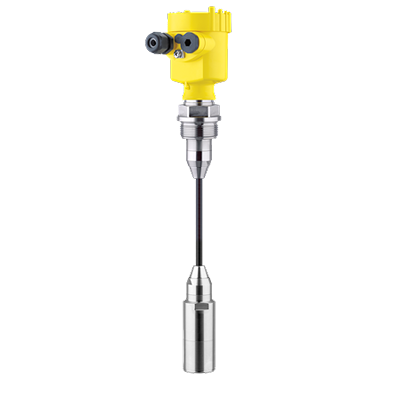

Order Code:B87.AXDDAXGCHXKIMXX
Name:Pressure transmitter
Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 030 | Scope | A | Europe |
| 040 | Approval | X | for Ex-free area (incl. Ordinary Location approval) |
| 050 | Version / Process temperature | D | Connection tube 316L / -12...+100°C |
| 070 | Process fitting / Material | DA | Thread G1½, DIN3852-A / 316L |
| 080 | Transmitter options | X | without |
| 090 | Pressure | G | Relative pressure (measurement against atmosphere) |
| 100 | Measuring range | C | 0...+0.4bar (0...+40kPa) |
| 140 | Electronics | H | Two-wire 4 ... 20 mA/HART |
| 170 | Supplementary electronics | X | without |
| 190 | Housing | K | Plastic single chamber |
| 210 | Housing version / Protection | I | compact / IP66/IP67; TYPE 4X |
| 230 | Cable entry / Connection | M | M20x1.5 / Cable gland PA black (ø5-9mm), standard |
| 240 | Display/Adjustment module PLICSCOM | X | without |
| 250 | Certificates | X | No |
