DF85.IXD1CEMHXADOAXXXXXXXXXNXXXXXXXX

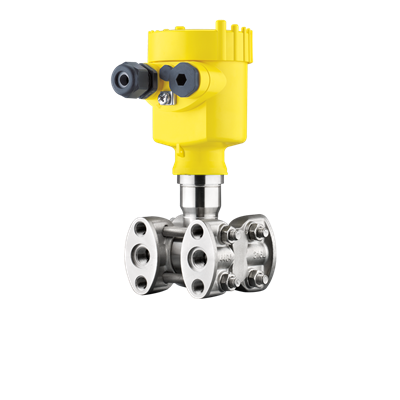

Differential pressure transmitter

VEGA DF85.IXD1CEMHXADOAXXXXXXXXXNXXXXXXXX

Belongs to VEGADIF 85（DF85）

DF85.IXD1CEMHXADOAXXXXXXXXXNXXXXXXXX；Scope Worldwide；Approval for Ex-free area；Process Fitting / Material / Lateral Ventilation NPT1/4-18, IEC61518, UNF7/16-20 / 316L / without；Material membrane for d

Get Quote Back

Order Code：DF85.IXD1CEMHXADOAXXXXXXXXXNXXXXXXXX

Name：DF85.IXD1CEMHXADOAXXXXXXXXXNXXXXXXXX

Configuration

Code	Name	Order	Specification
030	Scope	I	Worldwide
040	Approval	X	for Ex-free area
050	Process Fitting / Material / Lateral Ventilation	D	NPT1/4-18, IEC61518, UNF7/16-20 / 316L / without
060	Material membrane for differential pressure measuring cell	1	316L
070	Seal	C	PTFE (PN160)
080	Measuring range / PN	E	3bar (300kPa) / 160bar (16000kPa)
110	Accuracy class	M	0.065 %
120	Electronics	H	Two-wire 4 ... 20 mA/HART
140	Supplementary electronics	X	without
160	Housing	A	Aluminium single chamber
170	Housing version / Protection	D	compact / IP66/IP68 (0.2bar); NEMA 6P
200	Cable entry / Connection	O	M20x1.5 / Cable gland brass nickle plated (ø6-12mm)
210	Display/Adjustment module PLICSCOM	A	mounted
220	Connection high pressure side	X	without
230	Process fitting / Diaphragm design / Material high pressure side	XX	without
240	Connection low pressure side	X	without
250	Process fitting / Diaphragm design / Material low pressure side	XX	without
260	Seal low pressure side	X	without
270	Diaphragm material	X	without
280	Isolating liquid / Temperature	X	without
290	Vacuum service	N	No
300	Accessory	X	without
310	Accessory version / Material / Material valve seal	X	without
320	Accessory process side	X	without
330	Accessory sensor side	X	without
340	Accessory fixing screws / Material	X	without
350	Accessory Process seal / Temperature range	X	without
360	Mounting accessory / Material	X	without
380	Certificates	X	No
