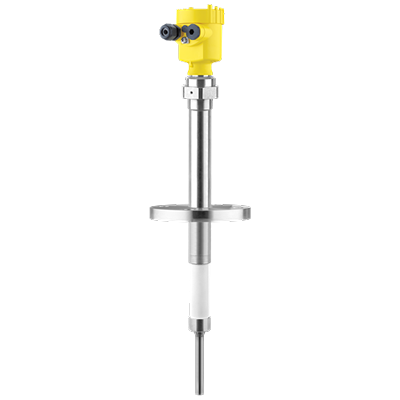

Capacitive level switch

Name: CL67.XX3GDHCMKX
Brand: VEGA
SKU: CL67.XX3GDHCMKX
Availability: InStock

VEGA CL67.XX3GDHCMKX

Belongs to VEGACAL 67（CL67）

CL67.XX3GDHCMKX；Approval without；Version / Process temperature Rod (Ø15mm) 316L with ceramic insulation / -50...+400°C；Process fitting / Material Thread G1½ PN16, DIN 3852-A / 316L；Electronics Two-wir

Get Quote Back

Order Code：CL67.XX3GDHCMKX

Name：CL67.XX3GDHCMKX

Configuration

Code	Name	Order	Specification
020	Approval	XX	without
030	Version / Process temperature	3	Rod (Ø15mm) 316L with ceramic insulation / -50...+400°C
040	Process fitting / Material	GD	Thread G1½ PN16, DIN 3852-A / 316L
050	Electronics	H	Two-wire 4 ... 20 mA/HART
080	Housing / Protection	C	Cable outlet IP68 with external stainless steel single chamber housing (electropolished) / IP66/IP67
090	Cable entry / Cable gland / Plug connection	M	M20x1.5 / with / without
110	Display/Adjustment module PLICSCOM	K	mounted; with Bluetooth, magnetic pen operation
140	Additional equipment	X	without

1 models · click to expand

Model	Name
CL67.XX3GDHCMKX	Capacitive level switch
