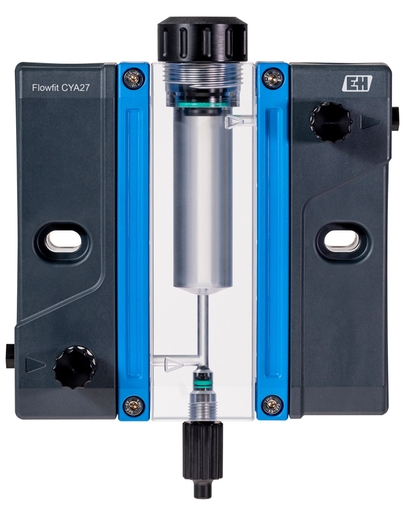

Flowfit CYA27 is capable of measuring no more than 6 relevant parameters simultaneously. The sensor is installed in the mounting bracket for high-precision measurement, and the sample flow rate is as low as 5 l/h (1.32 gph). The ability to precisely control processes such as disinfection with minimal water loss. The installation method of the mounting bracket is very flexible, and the sampling valve, cleaning unit and injection unit can be selected. Flow monitoring ensures that the measurement is not interrupted.

advantage
Maximum flexibility: the mounting bracket adopts modular structure design to meet the requirements of various working conditions. Up to 6 parameters can be measured simultaneously. Various installation methods help users to correctly position the sensor and ensure high-precision measurement results.
Lowest water loss: The sensor is installed in the Flowfit CYA27, and the required sample flow rate is as low as 5 l/h (1.32 gph). Only a small amount of water is consumed.
Reliable measurement: with flow monitoring function, to ensure that the measurement is not interrupted. Optional status indicator, clearly know whether the flow is correct, help users quickly find and correct errors.
Easy maintenance: Optional cleaning unit and injection unit, automatic adjustment of cleaning cycle and acidification medium, to meet the requirements of specific disinfection process.

Application areas
Flowfit CYA27 flow-through mounting bracket supports multi-parameter measurement, such as residual chlorine, chlorine dioxide, residual bromine, ozone, pH/ORP, conductivity or dissolved oxygen, mainly installed in the bypass pipe. Suitable for the following applications:
Drinking water
Process water
Sea water
Swimming pool water
