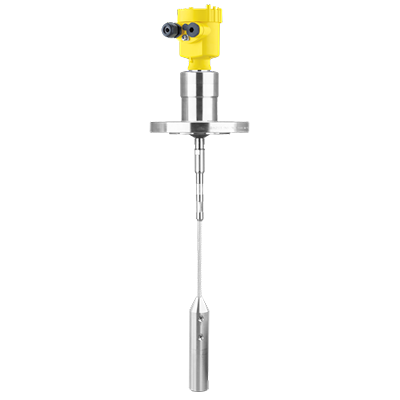

Order Code：FX82.AXFABKHXA1XX
Name：FX82.AXFABKHXA1XX
Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 020 | Scope | A | Europe |
| 030 | Approval | X | for Ex-free area (CE) |
| 040 | Version / Material | F | Exchangeable cable (ø6mm) with gravity weight / 316 |
| 070 | Process fitting / Material | AB | Flange NPS 2" Class 150 RF, ASME B16.5 / 316/316L |
| 080 | Seal / Process temperature | K | FFKM (Kalrez 6375) / -20...+200°C |
| 090 | Electronics | H | Two-wire 4 ... 20 mA/HART |
| 100 | Supplementary electronics | X | without |
| 120 | Housing / Protection | A | Aluminium single chamber / IP66/IP68 (0.2bar) |
| 150 | Cable entry / Connection | 1 | M20x1.5 / without |
| 160 | Display/Adjustment module PLICSCOM | X | without |
| 180 | Certificates | X | No |
