Product family：
Micropilot FMR20
Short code FMR20-HAR9/0
Micropilot FMR20；Approval Non-hazardous area；Power Supply/Output/Operation 4-wire; Modbus RS485 + Bluetooth；Antenna/Max. Measuring Range 80mm/3"; 10m solid -40oC...80oC/-40…176oF；Process Connection Re
Order Code：FMR20-AARCNWDEXR01 I FMR20-HAR9/0

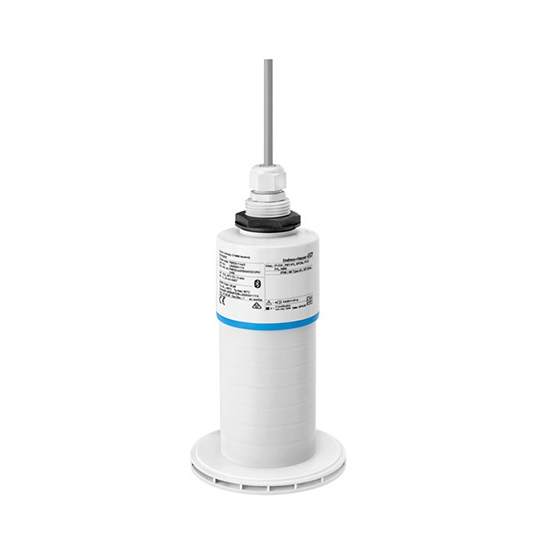

Name：Micropilot FMR20

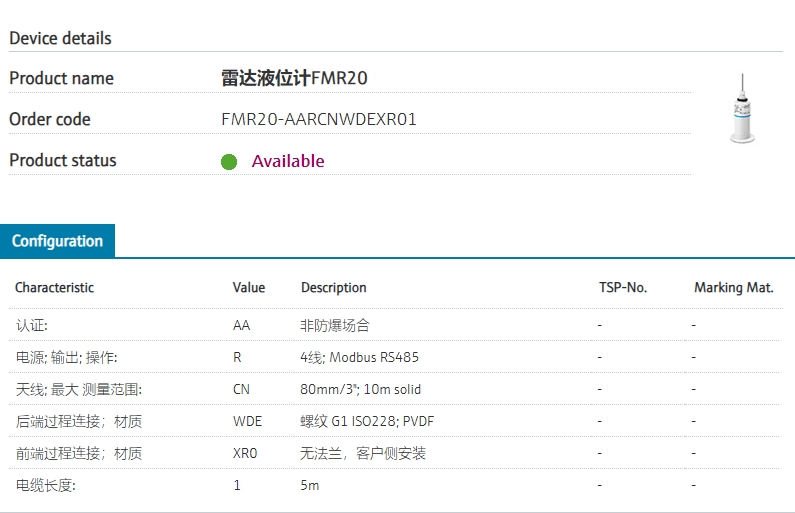

Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | AA | Non-hazardous area |
| 020 | Power Supply; Output; Operation | R | 4-wire; Modbus RS485 + Bluetooth |
| 070 | Antenna; Max. Measuring Range | CN | 80mm/3"; 10m solid -40oC...80oC/-40…176oF |
| 095 | Process Connection Rear Side; Material | WDE | Thread G1 ISO228; PVDF |
| 100 | Process Connection Front Side; Material | XR0 | Mounting customer side w/o flange |
| 120 | Cable Length | 1 | 5m/16ft |
Configuration Explained
This is an FMR20 radar level transmitter, economical version, for the water and wastewater industry, non-hazardous area, four-wire Modbus RS485 output, digital signal goes straight into the system, 80 mm antenna, up to 10 m for solids, G1 thread PVDF at the rear, front end fitted on site, no flange supplied, 5 m cable, suitable for silos and slag pits, simple installation, no tank cleaning, for continuous measurement of solids level and wastewater pits.
