Product family：

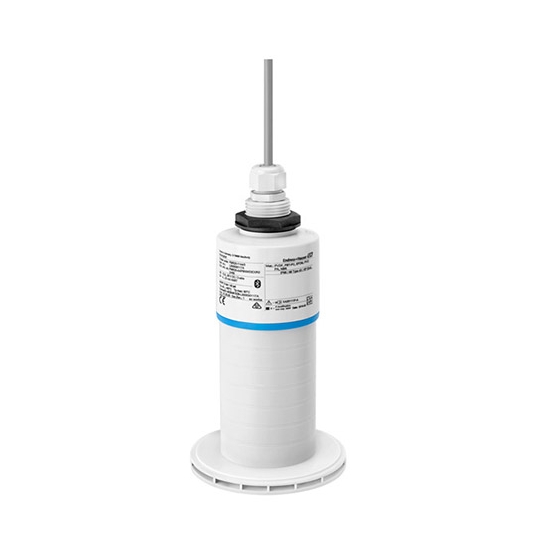

Micropilot FMR20
Short code FMR20-FE46/0
Micropilot FMR20；Approval NEPSI Ex ia IIC T4 Ga；Power Supply/Output/Operation 2-wire; 4-20mA HART; HART/Bluetooth (App) configuration；Antenna/Max. Measuring Range 40mm/1-1/2"; 15m liquid -40oC...80oC/
Order Code：FMR20-NAPBMWDEWFE1 I FMR20-FE46/0
Name：Micropilot FMR20

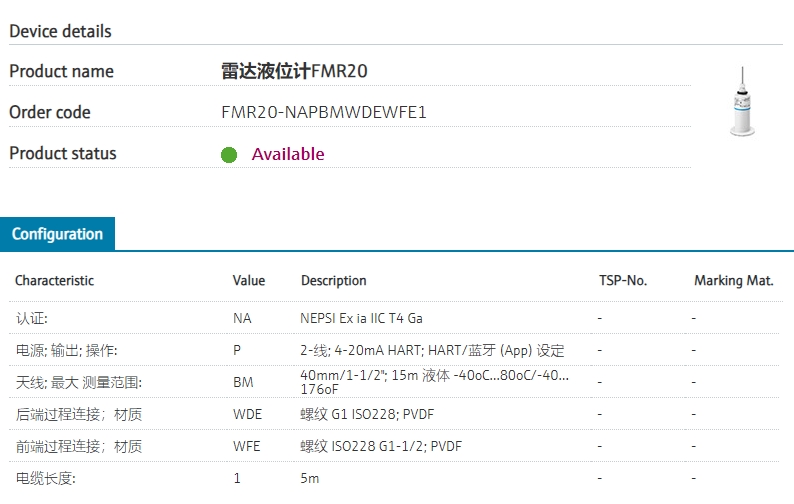

Configuration
| Code | Name | Order | Specification |
|---|---|---|---|
| 010 | Approval | NA | NEPSI Ex ia IIC T4 Ga |
| 020 | Power Supply; Output; Operation | P | 2-wire; 4-20mA HART; HART/Bluetooth (App) configuration |
| 070 | Antenna; Max. Measuring Range | BM | 40mm/1-1/2"; 15m liquid -40oC...80oC/-40…176oF |
| 095 | Process Connection Rear Side; Material | WDE | Thread G1 ISO228; PVDF |
| 100 | Process Connection Front Side; Material | WFE | Thread ISO228 G1-1/2; PVDF |
| 120 | Cable Length | 1 | 5m/16ft |
Configuration Explained
This is an FMR20 radar level transmitter, the most economical E+H model, for the water and wastewater industry and various duties, NEPSI intrinsically safe approval, suitable for explosion hazard areas, two-wire 4-20mA HART, set with HART or the phone Bluetooth app, 40 mm antenna, up to 10 m for liquids, rated -40 to 80 °C, G1 thread PVDF at the rear, G1-1/2 thread PVDF at the front, 5 m cable, for level measurement in tanks and wastewater wells.
